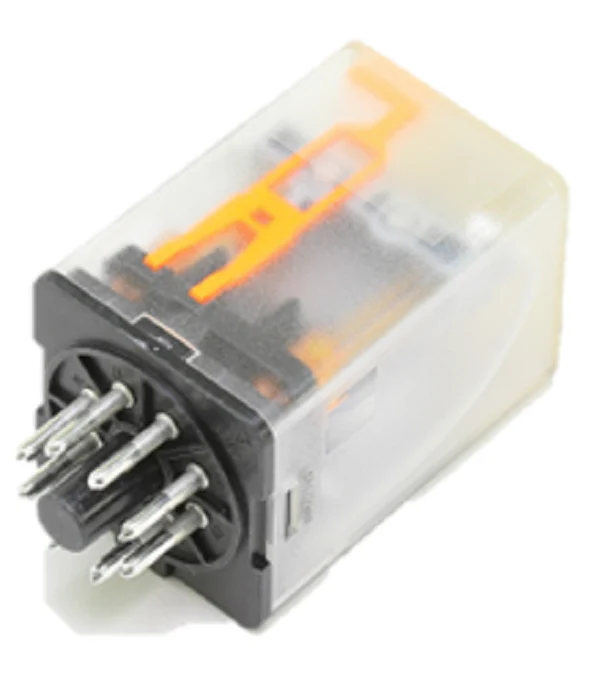

Eaton Cutler-Hammer D3RR2T1 Relay
The Eaton Cutler-Hammer D3RR2T1 Relay is a heavy-duty DPDT ice cube relay designed for reliable switching in demanding HVACR and industrial control circuits. Engineered with a standard 8-pin octal base, this general-purpose relay features a 24VDC coil and is rated for a 10A contact amperage, making it a versatile choice for motor control and pilot duty applications. The D3 series design incorporates rigid pins to ensure secure seating in sockets and mitigate the risk of pin damage during installation. With a contact rating capable of handling 1/3 hp at 120VAC and 1/2 hp at 240VAC, the D3RR2T1 provides robust performance for controlling smaller mechanical loads and high-current peripheral equipment. Its plug-in unit form factor allows for rapid field replacement, minimizing system downtime for contractors. This industrial control relay is encased in an IP40-rated enclosure, providing protection against solid objects in typical mechanical room environments while maintaining a compact footprint for high-density panel layouts.
Key Benefits- Dual-Pole Versatility: The DPDT contact configuration allows for simultaneous control of two separate circuits or polarity reversal.
- Enhanced Diagnostics: Integrated flag indicator and manual push-to-test button enable quick circuit verification without needing coil power.
- Secure Installation: Features a lock-down door to hold contacts in the operate position for systematic circuit analysis.
- Voltage Stability: Designed to maintain contact integrity without chattering during momentary voltage drops of up to 50%.
- Universal Compatibility: Fits standard 8-pin relay sockets, ensuring seamless integration into existing control logic panels.
- What is the maximum voltage rating for the D3RR2T1 contacts? This relay is rated for a maximum switching voltage of 300V.
- Can this relay be used for manual troubleshooting? Yes, the built-in push-to-test button and lock-down door allow technicians to manually cycle and hold the contacts for testing.
- Is the D3RR2T1 suitable for high-vibration environments? The rigid octal base pins and secure socket-mount design are optimized for stability in standard industrial and HVACR applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
