Eaton Cutler-Hammer D3RF2A Relay

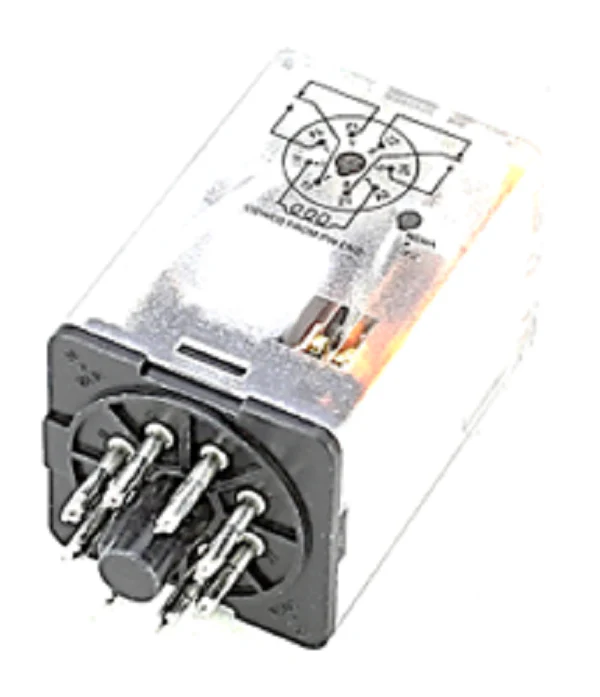

The Eaton Cutler-Hammer D3RF2A is a high-performance DPDT (Double Pole Double Throw) ice cube relay designed for reliable switching in HVACR control circuits and industrial automation. Operating on a 120VAC coil voltage, this 8-pin general-purpose relay provides consistent contact switching for logic-level signals and power loads up to 10 Amps. The D3 Series plug-in relay features a clear polycarbonate housing for easy visual inspection of the contacts and a mechanical flag indicator to show the relay’s status in real-time. Engineered for high-cycle environments, it integrates seamlessly into octal socket bases such as the D3PA2 or D3PAL2, ensuring rapid field replacement and reduced system downtime. The silver alloy contacts are optimized for low resistance and thermal stability, making this electromechanical relay a preferred choice for 120V relay applications involving motor starters, solenoids, and heating elements where electrical noise immunity and vibration resistance are critical for field performance.
Key Benefits for Technicians- Industry-Standard 8-Pin Configuration: Fits standard octal sockets, facilitating direct drop-in replacement for existing Eaton D3RF2A or compatible industrial relays.
- High Switching Capacity: Rated for 10A at 240VAC/28VDC, providing the versatility to handle both resistive and inductive loads in complex control loops.
- Diagnostic Visibility: Features an integrated mechanical indicator and clear cover to verify coil excitation and contact movement without specialized tools.
- Rugged Build Quality: Built to withstand the harsh environments of HVACR mechanical rooms, ensuring long-term coil reliability and contact integrity.
What is the contact rating for the Eaton D3RF2A relay?
The contacts are rated for 10 Amps resistive at 240VAC and 28VDC, suitable for controlling auxiliary fans, pumps, and sequence-of-operation logic.
Does this relay require a specific socket for installation?
Yes, the D3RF2A is an 8-pin plug-in relay designed for use with standard 8-pin octal sockets; ensure the socket is rated for the circuit's maximum current and voltage.
Can this relay be used as a replacement for DPDT ice cube relays from other manufacturers?
If the pin layout, coil voltage (120VAC), and contact ratings match the application requirements, this DPDT 8-pin relay can typically substitute for other general-purpose relays in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Eaton Cutler-Hammer D3RF2A Relay
The Eaton Cutler-Hammer D3RF2A is a high-performance DPDT (Double Pole Double Throw) ice cube relay designed for reliable switching in HVACR control circuits and industrial automation. Operating on a 120VAC coil voltage, this 8-pin general-purpose relay provides consistent contact switching for logic-level signals and power loads up to 10 Amps. The D3 Series plug-in relay features a clear polycarbonate housing for easy visual inspection of the contacts and a mechanical flag indicator to show the relay’s status in real-time. Engineered for high-cycle environments, it integrates seamlessly into octal socket bases such as the D3PA2 or D3PAL2, ensuring rapid field replacement and reduced system downtime. The silver alloy contacts are optimized for low resistance and thermal stability, making this electromechanical relay a preferred choice for 120V relay applications involving motor starters, solenoids, and heating elements where electrical noise immunity and vibration resistance are critical for field performance.
Key Benefits for Technicians- Industry-Standard 8-Pin Configuration: Fits standard octal sockets, facilitating direct drop-in replacement for existing Eaton D3RF2A or compatible industrial relays.
- High Switching Capacity: Rated for 10A at 240VAC/28VDC, providing the versatility to handle both resistive and inductive loads in complex control loops.
- Diagnostic Visibility: Features an integrated mechanical indicator and clear cover to verify coil excitation and contact movement without specialized tools.
- Rugged Build Quality: Built to withstand the harsh environments of HVACR mechanical rooms, ensuring long-term coil reliability and contact integrity.
What is the contact rating for the Eaton D3RF2A relay?
The contacts are rated for 10 Amps resistive at 240VAC and 28VDC, suitable for controlling auxiliary fans, pumps, and sequence-of-operation logic.
Does this relay require a specific socket for installation?
Yes, the D3RF2A is an 8-pin plug-in relay designed for use with standard 8-pin octal sockets; ensure the socket is rated for the circuit's maximum current and voltage.
Can this relay be used as a replacement for DPDT ice cube relays from other manufacturers?
If the pin layout, coil voltage (120VAC), and contact ratings match the application requirements, this DPDT 8-pin relay can typically substitute for other general-purpose relays in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
