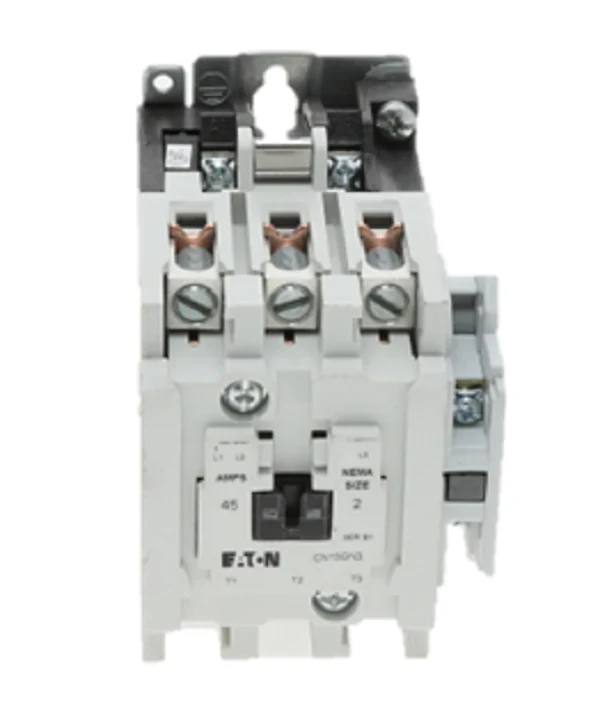

Eaton Cutler-Hammer CN15GN3AB Contactor
The Eaton Cutler-Hammer CN15GN3AB is a NEMA Size 2 magnetic contactor engineered for reliable motor control in heavy-duty HVACR and industrial applications. Built for non-reversing operation, this unit features a 3-pole configuration capable of handling 45 continuous amps. The 110/120Vac 50/60Hz coil voltage ensures compatibility with standard control circuits, while the open type enclosure design allows for seamless integration into existing panels. As a part of the Freedom Series, the CN15GN3AB includes one normally open auxiliary contact for status signaling or interlocking. Its robust construction supports higher horsepower ratings compared to smaller NEMA sizes, making it a critical component for electric motor control and magnetic starter assemblies. Technicians can rely on the silver cadmium oxide contacts for superior conductivity and resistance to welding under high-inrush starting currents.
Key Benefits- NEMA Size 2 Rated: Provides robust power handling for demanding industrial motors and compressors.
- 45A Continuous Current: Optimized for high-load cycles without excessive heat buildup.
- Versatile Coil Voltage: The 110/120V coil operates at both 50Hz and 60Hz for application flexibility.
- Freedom Series Compact Design: Saves valuable panel space while maintaining industry-standard mounting footprints.
- Integrated Auxiliary Contact: Simplifies wiring for control logic and remote monitoring.
What is the maximum horsepower rating for the CN15GN3AB?
As a NEMA Size 2 contactor, it is typically rated for up to 15 HP at 230V and 25 HP at 460V/575V for three-phase applications.
Can I add more auxiliary contacts to this unit?
Yes, the Eaton Freedom Series design allow for the field-installation of additional top or side-mounted auxiliary contact blocks to meet specific sequence-of-operation requirements.
Is this contactor suitable for reversing motor applications?
This specific model is a non-reversing contactor. For reversing applications, you would require a mechanically interlocked pair of contactors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $653.93
-65%$653.93
$228.88Eaton Cutler-Hammer CN15GN3AB Contactor
