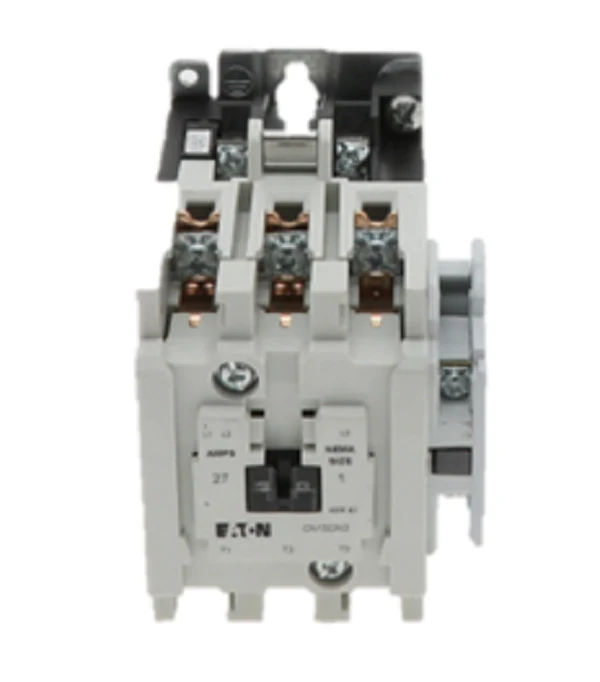

Eaton Cutler-Hammer CN15DN3AB Contactor
The Eaton Cutler-Hammer CN15DN3AB is a professional-grade NEMA Size 1 contactor from the renowned Freedom Series, engineered for reliable motor control in demanding HVACR and industrial applications. This 3-pole non-reversing contactor is designed to handle a continuous current of 27 Amps and is rated for up to 600VAC. It features a high-performance 110/120V AC coil (50/60Hz) and comes standard with one normally open (1NO) auxiliary contact for status signaling or interlocking circuits. Built with a compact, open-type enclosure, the CN15DN3AB integrates seamlessly into existing control panels, offering NEMA motor starter reliability with a space-saving footprint. Industry professionals favor this magnetic contactor for its durable construction and ease of installation, making it a staple for Eaton Freedom Series replacements and new technical builds. Whether you are managing compressor loads or large fan motors, this Eaton 27 Amp contactor provides the robust switching performance required for modern electrical infrastructure.
Key Benefits- Industry-Standard Reliability: As part of the Eaton Freedom Series, this unit meets rigorous NEMA Size 1 standards for long-term durability in commercial environments.
- Versatile Compatibility: Designed as a direct fit for Cutler-Hammer motor control systems, ensuring minimal downtime during field replacements.
- High Power Capacity: Rated for 27 continuous amps, capable of supporting 3-phase motors up to 7-1/2 HP at 240V or 10 HP at 480V.
- Efficient Installation: Features accessible screw-type terminals and a 120V control coil, common in most standard HVAC and refrigeration control circuits.
- Integrated Auxiliary: Includes a factory-installed 1NO auxiliary contact, eliminating the need for separate add-on components for basic feedback loops.
What is the difference between this NEMA contactor and an IEC-rated version?
This NEMA Size 1 contactor is designed with larger strike distances and more robust components compared to standard IEC devices, providing a higher factor of safety and longer service life in heavy-duty North American industrial applications.
Can the coil be replaced if the control voltage changes?
Yes, Freedom Series contactors feature replaceable coils. However, this specific model (CN15DN3AB) is factory-configured for 110/120VAC, which is the standard for most commercial HVAC motor starters.
Does this unit include overload protection?
This is an open-type non-reversing contactor only. For full motor protection, you must pair it with a compatible Eaton Freedom Series overload relay to form a complete motor starter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $505.51
-65%$505.51
$176.93Eaton Cutler-Hammer CN15DN3AB Contactor
The Eaton Cutler-Hammer CN15DN3AB is a professional-grade NEMA Size 1 contactor from the renowned Freedom Series, engineered for reliable motor control in demanding HVACR and industrial applications. This 3-pole non-reversing contactor is designed to handle a continuous current of 27 Amps and is rated for up to 600VAC. It features a high-performance 110/120V AC coil (50/60Hz) and comes standard with one normally open (1NO) auxiliary contact for status signaling or interlocking circuits. Built with a compact, open-type enclosure, the CN15DN3AB integrates seamlessly into existing control panels, offering NEMA motor starter reliability with a space-saving footprint. Industry professionals favor this magnetic contactor for its durable construction and ease of installation, making it a staple for Eaton Freedom Series replacements and new technical builds. Whether you are managing compressor loads or large fan motors, this Eaton 27 Amp contactor provides the robust switching performance required for modern electrical infrastructure.
Key Benefits- Industry-Standard Reliability: As part of the Eaton Freedom Series, this unit meets rigorous NEMA Size 1 standards for long-term durability in commercial environments.
- Versatile Compatibility: Designed as a direct fit for Cutler-Hammer motor control systems, ensuring minimal downtime during field replacements.
- High Power Capacity: Rated for 27 continuous amps, capable of supporting 3-phase motors up to 7-1/2 HP at 240V or 10 HP at 480V.
- Efficient Installation: Features accessible screw-type terminals and a 120V control coil, common in most standard HVAC and refrigeration control circuits.
- Integrated Auxiliary: Includes a factory-installed 1NO auxiliary contact, eliminating the need for separate add-on components for basic feedback loops.
What is the difference between this NEMA contactor and an IEC-rated version?
This NEMA Size 1 contactor is designed with larger strike distances and more robust components compared to standard IEC devices, providing a higher factor of safety and longer service life in heavy-duty North American industrial applications.
Can the coil be replaced if the control voltage changes?
Yes, Freedom Series contactors feature replaceable coils. However, this specific model (CN15DN3AB) is factory-configured for 110/120VAC, which is the standard for most commercial HVAC motor starters.
Does this unit include overload protection?
This is an open-type non-reversing contactor only. For full motor protection, you must pair it with a compatible Eaton Freedom Series overload relay to form a complete motor starter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Eaton Cutler-Hammer CN15DN3AB is a professional-grade NEMA Size 1 contactor from the renowned Freedom Series, engineered for reliable motor control in demanding HVACR and industrial applications. This 3-pole non-reversing contactor is designed to handle a continuous current of 27 Amps and is rated for up to 600VAC. It features a high-performance 110/120V AC coil (50/60Hz) and comes standard with one normally open (1NO) auxiliary contact for status signaling or interlocking circuits. Built with a compact, open-type enclosure, the CN15DN3AB integrates seamlessly into existing control panels, offering NEMA motor starter reliability with a space-saving footprint. Industry professionals favor this magnetic contactor for its durable construction and ease of installation, making it a staple for Eaton Freedom Series replacements and new technical builds. Whether you are managing compressor loads or large fan motors, this Eaton 27 Amp contactor provides the robust switching performance required for modern electrical infrastructure.
Key Benefits- Industry-Standard Reliability: As part of the Eaton Freedom Series, this unit meets rigorous NEMA Size 1 standards for long-term durability in commercial environments.
- Versatile Compatibility: Designed as a direct fit for Cutler-Hammer motor control systems, ensuring minimal downtime during field replacements.
- High Power Capacity: Rated for 27 continuous amps, capable of supporting 3-phase motors up to 7-1/2 HP at 240V or 10 HP at 480V.
- Efficient Installation: Features accessible screw-type terminals and a 120V control coil, common in most standard HVAC and refrigeration control circuits.
- Integrated Auxiliary: Includes a factory-installed 1NO auxiliary contact, eliminating the need for separate add-on components for basic feedback loops.
What is the difference between this NEMA contactor and an IEC-rated version?
This NEMA Size 1 contactor is designed with larger strike distances and more robust components compared to standard IEC devices, providing a higher factor of safety and longer service life in heavy-duty North American industrial applications.
Can the coil be replaced if the control voltage changes?
Yes, Freedom Series contactors feature replaceable coils. However, this specific model (CN15DN3AB) is factory-configured for 110/120VAC, which is the standard for most commercial HVAC motor starters.
Does this unit include overload protection?
This is an open-type non-reversing contactor only. For full motor protection, you must pair it with a compatible Eaton Freedom Series overload relay to form a complete motor starter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
