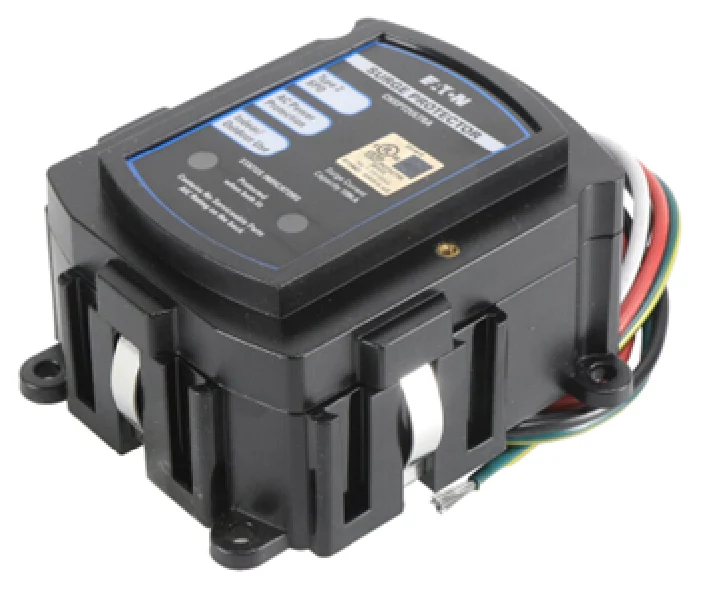

Eaton Cutler-Hammer CHSPT2ULTRA Surge Protection
The Eaton Cutler-Hammer CHSPT2ULTRA is a professional-grade Type 2 Surge Protective Device (SPD) engineered for critical service entrance applications. Designed for 120/240Vac single-phase systems, this unit delivers a massive 108,000 Amps surge current capacity per phase, ensuring superior high-energy transient suppression before surges can penetrate deeper into the facility. As a veteran-preferred whole-home surge protector, it utilizes thermally protected metal oxide varistor (MOV) technology to provide a 20 kA nominal discharge current (In) rating, meeting the rigorous demands of modern electrical code requirements for service equipment.
Built for durability in varied environments, the CHSPT2ULTRA is housed in a rugged NEMA 4 enclosure, making it suitable for both indoor and outdoor installations. For maximum performance and to achieve its full published ratings, contractors should install this device using a dedicated 2-pole 50-amp circuit breaker. The compact footprint allows for seamless integration with any manufacturer's load center, while the clear LED status indicators provide immediate visual verification of protection across all modes, including L-N, L-G, N-G, and L-L.
Key Benefits
- Industrial-Strength Protection: Features a 108 kA peak surge capacity to safeguard sensitive electronics and high-value HVACR equipment from externally generated transients.
- Universal Compatibility: Designed to mount externally and connect to any brand of electrical panel, providing a versatile solution for retrofit or new construction.
- Robust Environmental Sealing: The NEMA 4 rated housing ensures protection against windblown dust, rain, and hose-directed water.
- Low Profile Design: Specifically engineered for quick-connect installation, reducing lead length to minimize impedance and maximize clamping efficiency.
Common Questions
Does this unit require a specific brand of breaker?
No, since it mounts externally to the load center, you can use a compatible 2-pole 50A breaker from any manufacturer to facilitate the connection.
Can the CHSPT2ULTRA be flush-mounted?
Yes, while it comes standard for surface mounting, it is compatible with a flush-mount lid (CHSPFMKIT) for clean installations in finished walls.
What do the LED lights indicate?
The dual LEDs monitor the health of the protection modules. If an LED is extinguished, the surge suppression capability has been compromised by a significant event and the unit requires replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
