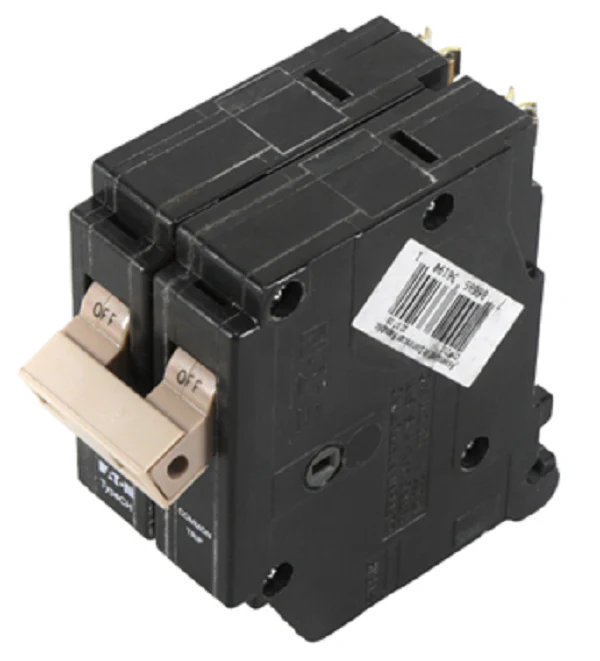

Eaton Cutler-Hammer CHF230 Circuit Breaker
The Eaton Cutler-Hammer CHF230 is a professional-grade 2-pole 30-amp circuit breaker designed specifically for Type CH load centers. This 3/4-inch plug-on circuit breaker provides essential overcurrent protection for residential and light commercial HVACR equipment, including air handlers and condensing units. Engineered with a thermal-magnetic trip mechanism, the CHF230 features a built-in mechanical trip flag that offers an immediate visual indication of a tripped status, distinct from a manual "off" position. This 120/240V breaker is HACR rated, ensuring it meets the rigorous demands of multi-tap motor loads and heating components. With a 10 kAIC interrupting rating and a common trip design, both poles disconnect simultaneously during a fault to protect your 240V branch circuits. The Eaton CHF230 utilizes high-quality Tri-Drive screws and is compatible with both copper and aluminum wiring (14-8 AWG), providing a reliable, long-term solution for contractors maintaining modern electrical distribution systems.
Key Benefits- Mechanical Trip Flag: Provides a clear, highly visible red indicator to quickly distinguish between a manual shut-off and a thermal or magnetic trip.
- HACR Rated Performance: Specifically certified for use with heating, air conditioning, and refrigeration equipment, handling high-inrush currents without nuisance tripping.
- Compact Space-Saving Design: The 3/4-inch width per pole allows for increased circuit density within Eaton Type CH panels.
- Quick-Make, Quick-Break Mechanism: Features a specialized toggle actuator that reduces internal arcing and extends the service life of the internal contacts.
- Common Trip Functionality: Ensures that a fault on one leg of a 240V circuit will immediately disconnect both poles for maximum safety.
Is the CHF230 compatible with older Westinghouse or BR load centers?
No. The CHF230 is exclusively designed for 3/4-inch Type CH load centers. It will not fit in 1-inch Type BR or legacy Westinghouse Bryant panels.
What wire size is required for this 30-amp breaker?
The pressure plate terminals are secondary-rated for #14-8 AWG copper or #14-10 AWG aluminum conductors, ensuring a secure connection for most 240V branch circuits.
How does the mechanical trip flag help with troubleshooting?
Unlike standard breakers where the handle stays in a center position, the flag provides a redundant visual confirmation of a trip, making it easier for technicians to identify faults in dimly lit mechanical rooms.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
