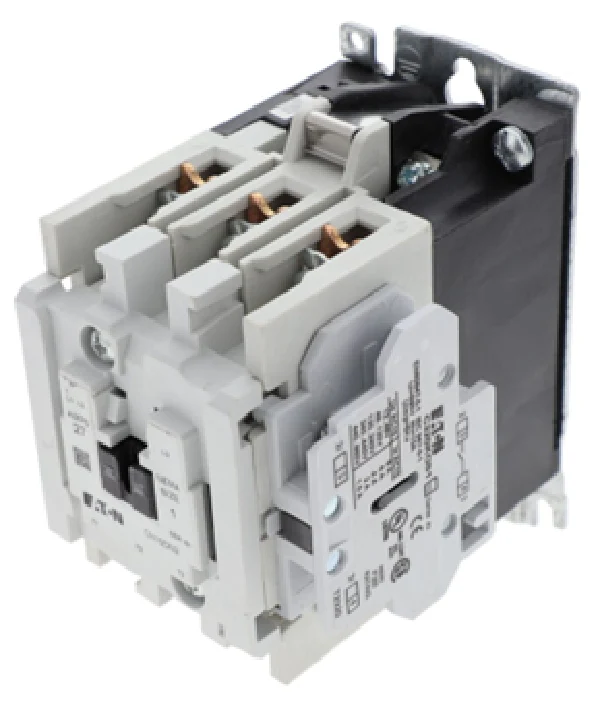

Eaton Cutler-Hammer CE15DNS3AB Contactor
The Eaton Cutler-Hammer CE15DNS3AB Contactor is a heavy-duty IECC non-reversing contactor engineered for the rugged demands of HVACR motor control systems. As a primary component of the Eaton Freedom Series, this 3-pole contactor is rated for an 18A inductive load (AC-3) and a 32A thermal current (AC-1), providing reliable switching for motors up to 10HP at 460V or 15HP at 575V. The 120V AC coil (110V @ 50Hz / 120V @ 60Hz) ensures compatibility with standard control circuits, while the integrated 1NO auxiliary contact allows for seamless status signaling or interlocking in complex panels.
Built for longevity in high-cycle environments, the CE15DNS3AB features twin-break, silver cadmium oxide contacts designed to resist arc erosion and welding. This D-frame contactor supports both horizontal and vertical mounting, offering maximum flexibility during field replacements or new installations. For technicians working in tight enclosures, the accessible screw-type terminals with captive pressure plates significantly reduce wiring time and ensure high-torque connections suitable for high-vibration applications.
Key Benefits:- Freedom Series Compatibility: Fully compatible with Eaton bimetallic overload relays and a wide range of snap-on accessories for easy system expansion.
- High Endurance: Industrial-grade construction designed for up to 2 million electrical operations at maximum horsepower.
- Compact D-Frame Design: Optimized 55mm frame width saves critical rail space in multi-component motor starter assemblies.
- Safe Termination: Features self-lifting pressure plates and is compatible with IP20 finger-proof shields for enhanced operator safety.
Is the CE15DNS3AB suitable for single-phase applications?
Yes, while it is a 3-pole contactor designed for 3-phase power, it can be utilized in single-phase systems by wiring the load through the appropriate poles according to local electrical codes.
What is the maximum voltage rating for this unit?
The power contacts are rated for operation up to 600VAC, making it ideal for standard industrial and commercial motor voltages.
Can I add more auxiliary contacts to this contactor?
Yes, the Freedom Series allows for the addition of side-mounted or top-mounted auxiliary contact blocks if your control logic requires more than the factory-installed 1NO contact.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $469.35
-65%$469.35
$164.27Eaton Cutler-Hammer CE15DNS3AB Contactor
