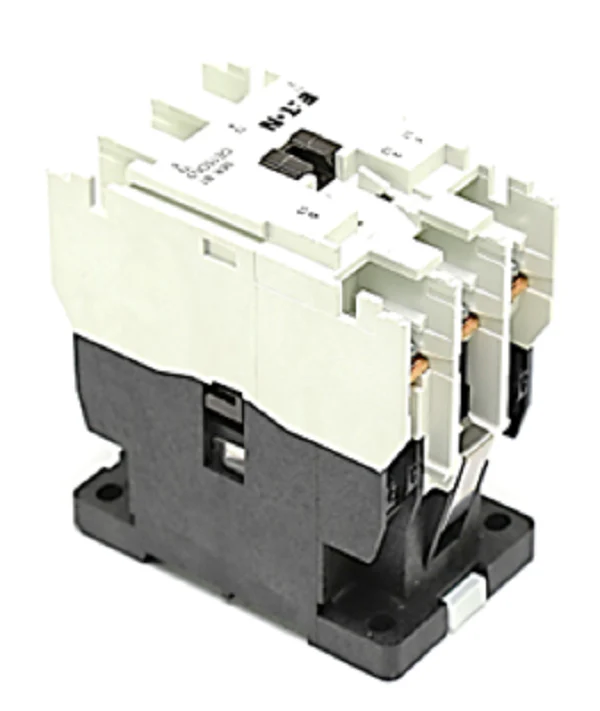

Eaton Cutler-Hammer CE15DN3TB Contactor
The Eaton Cutler-Hammer CE15DN3TB is a heavy-duty, IEC-rated contactor from the Freedom Series, engineered for reliable switching of motor loads and power circuits in commercial HVACR systems. This 18A 3-pole contactor features a 24V AC coil (50/60 Hz) and is designed for non-reversing applications where space-saving efficiency and high-cycle durability are required. With a N/O relay configuration and Frame D sizing, it provides a compact 55 mm footprint that integrates seamlessly into existing control panels. Built for longevity, it utilizes twin-break, silver cadmium oxide contacts to provide superior conductivity and resistance to arc erosion. For technicians performing field replacements, this Eaton XT IEC contactor offers a rugged steel mounting plate and screw terminals for secure, high-vibration resistance. Whether managing inductive loads for compressors or resistive heating elements, the CE15DN3TB ensures consistent arc suppression and electrical life rated for millions of operations.
Key Benefits:- Freedom Series Durability: Engineered with silver cadmium oxide contacts to minimize welding and extend component life under heavy mechanical stress.
- Versatile 24V Control: The 24 Vac coil is compatible with standard HVAC control transformers for streamlined integration.
- Compact Size D Frame: The 55 mm width allows for high-density mounting in congested electrical enclosures.
- High Cycle Rating: Designed for up to 20,000,000 mechanical operations, making it ideal for high-frequency switching tasks.
- Technical Compliance: Meets UL, CSA, and IEC standards, ensuring it meets strict safety and performance specifications for industrial use.
- Is the CE15DN3TB suitable for reversing motor applications? No, this is a non-reversing contactor. For reversing applications, a mechanical interlock and a second contactor are required.
- What is the maximum horsepower rating for this 18A contactor? It is typically rated for up to 5 HP at 230V and 10 HP at 460V for three-phase motor loads.
- Can I add auxiliary contacts to this unit? Yes, the Freedom Series design allows for the addition of top or side-mounted auxiliary contact blocks to meet specific logic requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
