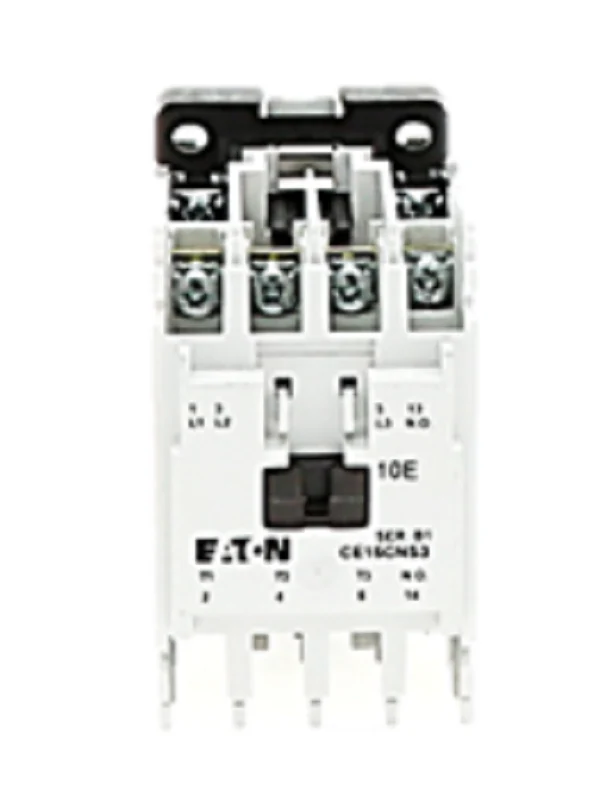

Eaton Cutler-Hammer CE15CNS3AB Contactor
The Eaton Cutler-Hammer CE15CNS3AB is a robust NEMA non-reversing contactor engineered for demanding industrial motor control and resistive load applications. Operating on a 120V AC coil voltage, this 3-pole contactor is rated for 12A inductive and 15A resistive loads. It features integrated 1NO auxiliary contacts, allowing for seamless control circuit integration and status feedback. Designed as part of the Freedom Series, the CE15CNS3AB provides superior reliability for switching motors in HVACR systems and manufacturing equipment. Its compact frame allows for efficient DIN rail or panel mounting, ensuring simple retrofits or new installations. This contactor is built to withstand high cycle rates and harsh electrical environments, maintaining low contact resistance and high thermal stability. Professional contractors rely on this Eaton electrical component for steady performance in commercial air handlers, pumps, and specialized refrigeration units.
Key Benefits- Enhanced Durability: Built with high-grade contact materials to resist pitting and welding during heavy inductive switching.
- Versatile Mounting: Standard footprint supports easy integration into existing NEMA-rated enclosures.
- Technical Precision: Positive-action contacts reduce arcing, extending the service life of the motor starter assembly.
- Simplified Wiring: Pressure plate terminals accommodate a variety of wire gauges for secure, vibration-resistant terminations.
What is the maximum horsepower rating for this contactor?
The CE15CNS3AB is typically rated for up to 2HP at 230V and 5HP at 460V for 3-phase motor applications, depending on the specific FLA of the motor.
Can the coil be replaced if it burns out?
Yes, the Freedom Series design allows for field-replaceable coils and auxiliary contact blocks to restore functionality without replacing the entire unit.
Is this contactor suitable for 50Hz applications?
The 120V coil is rated for 60Hz operation. Using it on a 50Hz system may lead to coil overheating or failure if the voltage and frequency ratios are not maintained.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
