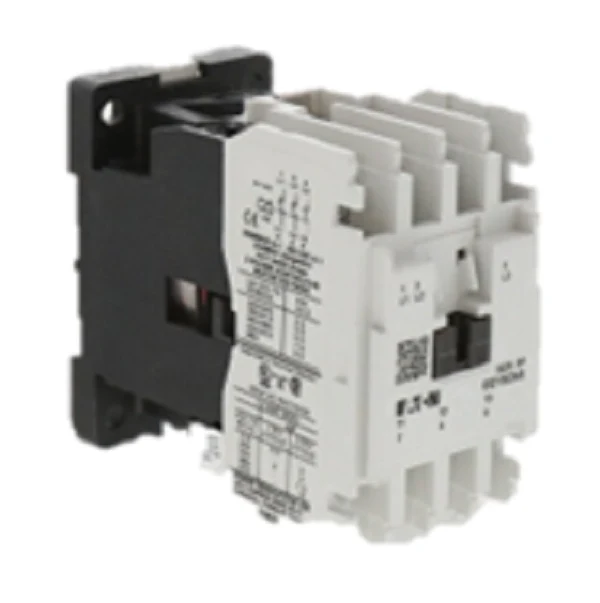

Eaton Cutler-Hammer CE15CN3TB Contactor
The Eaton Cutler-Hammer CE15CN3TB Contactor is a heavy-duty, IEC-rated control component from the Freedom Series lineup, engineered for precision motor control and industrial automation. This 3-pole contactor features a 24V 50/60Hz AC coil, making it a reliable choice for contractors managing HVACR systems and panel builds that require low-voltage control signals. Rated for 12 Amps (AC-3), this unit is ideal for switching motor loads where internal overcurrent protection is either provided separately or not required.
Built with silver cadmium oxide contacts, the Eaton CE15CN3TB offers high conductivity and superior resistance to arc erosion and welding, ensuring a long mechanical and electrical service life in demanding environments. The compact 45mm frame size allows for efficient rail or plate mounting, while the screw terminals with captive pressure plates significantly reduce wiring time for field technicians. This non-reversing magnetic contactor is frequently utilized in commercial heating and cooling applications, providing dependable performance for 3-phase systems up to 600V.
Key Benefits:- Efficient Voltage Control: Optimized 24V 50/60Hz coil interface integrates seamlessly with standard HVACR control circuits.
- Enhanced Contact Reliability: Long-life twin break silver cadmium oxide contacts minimize pitting and ensure consistent conductivity.
- Industrial Durability: Part of the Eaton Freedom Series, designed for high-cycle motor starting and industrial-grade reliability.
- Simplified Installation: Features top-located coil terminals and a steel mounting plate for flexible, fast-access wiring in tight enclosures.
- Standard Compliance: Fully UL listed and CSA certified for IEC non-reversing contactor applications in North American and international markets.
What is the maximum amperage for the CE15CN3TB?
This model is an IEC Size C device rated for a 12 Amp inductive load (AC-3) and up to 20 Amp thermal current (AC-1) at 600V.
Is this contactor compatible with Freedom Series overload relays?
Yes, as a Freedom Series contactor, it is designed for direct integration with Eaton bimetallic or C440 electronic overload relays for comprehensive motor protection.
Can I replace a NEMA contactor with this IEC unit?
While IEC contactors like the Eaton CE15CN3TB are more compact and application-specific, ensure the FLA and horsepower ratings meet your specific motor nameplate requirements before swapping from a NEMA-rated device.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $520.38
-65%$520.38
$182.13Eaton Cutler-Hammer CE15CN3TB Contactor
The Eaton Cutler-Hammer CE15CN3TB Contactor is a heavy-duty, IEC-rated control component from the Freedom Series lineup, engineered for precision motor control and industrial automation. This 3-pole contactor features a 24V 50/60Hz AC coil, making it a reliable choice for contractors managing HVACR systems and panel builds that require low-voltage control signals. Rated for 12 Amps (AC-3), this unit is ideal for switching motor loads where internal overcurrent protection is either provided separately or not required.
Built with silver cadmium oxide contacts, the Eaton CE15CN3TB offers high conductivity and superior resistance to arc erosion and welding, ensuring a long mechanical and electrical service life in demanding environments. The compact 45mm frame size allows for efficient rail or plate mounting, while the screw terminals with captive pressure plates significantly reduce wiring time for field technicians. This non-reversing magnetic contactor is frequently utilized in commercial heating and cooling applications, providing dependable performance for 3-phase systems up to 600V.
Key Benefits:- Efficient Voltage Control: Optimized 24V 50/60Hz coil interface integrates seamlessly with standard HVACR control circuits.
- Enhanced Contact Reliability: Long-life twin break silver cadmium oxide contacts minimize pitting and ensure consistent conductivity.
- Industrial Durability: Part of the Eaton Freedom Series, designed for high-cycle motor starting and industrial-grade reliability.
- Simplified Installation: Features top-located coil terminals and a steel mounting plate for flexible, fast-access wiring in tight enclosures.
- Standard Compliance: Fully UL listed and CSA certified for IEC non-reversing contactor applications in North American and international markets.
What is the maximum amperage for the CE15CN3TB?
This model is an IEC Size C device rated for a 12 Amp inductive load (AC-3) and up to 20 Amp thermal current (AC-1) at 600V.
Is this contactor compatible with Freedom Series overload relays?
Yes, as a Freedom Series contactor, it is designed for direct integration with Eaton bimetallic or C440 electronic overload relays for comprehensive motor protection.
Can I replace a NEMA contactor with this IEC unit?
While IEC contactors like the Eaton CE15CN3TB are more compact and application-specific, ensure the FLA and horsepower ratings meet your specific motor nameplate requirements before swapping from a NEMA-rated device.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
