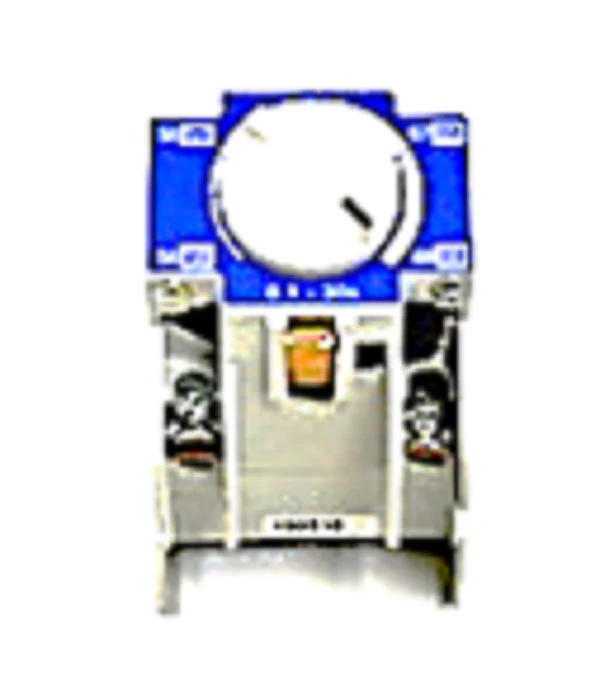

Eaton Cutler-Hammer C320TP1 Pneumatic Timer
The Eaton Cutler-Hammer C320TP1 Pneumatic Timer is a high-performance accessory designed for seamless integration with Freedom Series starters and contactors. Engineered for NEMA Size 00-2 and IEC Size A-K frames, this top-mounted timing relay provides critical logic control without the need for additional panel space. It features a versatile timing range of 0.1 to 30 seconds, adjustable via a professional-grade pneumatic diaphragm that ensures consistent repeatability in harsh industrial environments. The C320TP1 is field-convertible, allowing technicians to switch between ON-delay and OFF-delay operations by simply rotating the timer head. Each unit is equipped with 1NO-1NC timed contacts (DPST configuration), rated for heavy-duty applications up to 600V AC. When performing a motor control center (MCC) upgrade or replacing a pneumatic time delay relay, the C320TP1 offers a robust mechanical solution that eliminates the electrical noise issues often associated with solid-state alternatives. Ensure proper polarity across both poles during terminal block wiring to maintain circuit integrity.
Key Benefits- Field-Convertible Logic: Easily transitions between ON-delay and OFF-delay modes to meet specific sequence-of-operation requirements.
- Freedom Series Compatibility: Direct-mount design for Eaton Freedom Series contactors reduces installation time and wiring complexity.
- Precision Adjustment: The 0.1-30 second range provides the granular control necessary for mechanical interlocks and reduced-voltage starting.
- Space-Efficient Design: The top-mount pneumatic timer configuration preserves critical rail space by utilizing the contactor's existing footprint.
- Industrial Durability: Built with high-strength, temperature-resistant materials to handle the thermal demands of high-cycle industrial panels.
Can I install this timer alongside top-mounted auxiliary contacts?
No, the C320TP1 occupies the same mounting interface. If auxiliary contacts are required, use side-mounted auxiliary blocks to maintain compatibility.
Does this unit require a separate power supply for the timer mechanism?
No, it is a purely pneumatic timer. The timing action is triggered mechanically by the movement of the supported contactor or starter armature.
Is the timing adjustment sensitive to atmospheric debris?
While the pneumatic system is robust, it is best practice to use this unit within an appropriately rated NEMA enclosure to prevent heavy dust infiltration into the air-bleed orifice.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Eaton Cutler-Hammer C320TP1 Pneumatic Timer
The Eaton Cutler-Hammer C320TP1 Pneumatic Timer is a high-performance accessory designed for seamless integration with Freedom Series starters and contactors. Engineered for NEMA Size 00-2 and IEC Size A-K frames, this top-mounted timing relay provides critical logic control without the need for additional panel space. It features a versatile timing range of 0.1 to 30 seconds, adjustable via a professional-grade pneumatic diaphragm that ensures consistent repeatability in harsh industrial environments. The C320TP1 is field-convertible, allowing technicians to switch between ON-delay and OFF-delay operations by simply rotating the timer head. Each unit is equipped with 1NO-1NC timed contacts (DPST configuration), rated for heavy-duty applications up to 600V AC. When performing a motor control center (MCC) upgrade or replacing a pneumatic time delay relay, the C320TP1 offers a robust mechanical solution that eliminates the electrical noise issues often associated with solid-state alternatives. Ensure proper polarity across both poles during terminal block wiring to maintain circuit integrity.
Key Benefits- Field-Convertible Logic: Easily transitions between ON-delay and OFF-delay modes to meet specific sequence-of-operation requirements.
- Freedom Series Compatibility: Direct-mount design for Eaton Freedom Series contactors reduces installation time and wiring complexity.
- Precision Adjustment: The 0.1-30 second range provides the granular control necessary for mechanical interlocks and reduced-voltage starting.
- Space-Efficient Design: The top-mount pneumatic timer configuration preserves critical rail space by utilizing the contactor's existing footprint.
- Industrial Durability: Built with high-strength, temperature-resistant materials to handle the thermal demands of high-cycle industrial panels.
Can I install this timer alongside top-mounted auxiliary contacts?
No, the C320TP1 occupies the same mounting interface. If auxiliary contacts are required, use side-mounted auxiliary blocks to maintain compatibility.
Does this unit require a separate power supply for the timer mechanism?
No, it is a purely pneumatic timer. The timing action is triggered mechanically by the movement of the supported contactor or starter armature.
Is the timing adjustment sensitive to atmospheric debris?
While the pneumatic system is robust, it is best practice to use this unit within an appropriately rated NEMA enclosure to prevent heavy dust infiltration into the air-bleed orifice.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
