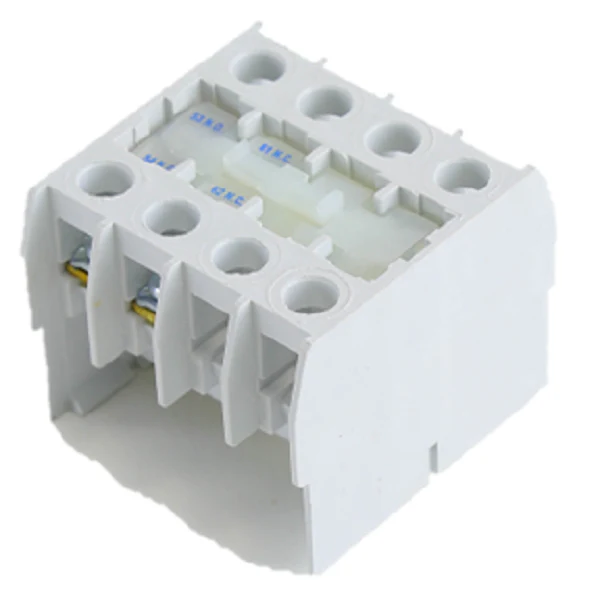

Eaton Cutler-Hammer C320KGT3 Auxiliary Contact
The Eaton Cutler-Hammer C320KGT3 is a high-performance top mounted auxiliary contact designed for seamless integration with Freedom Series starters and contactors. This 1NO-1NC (One Normally Open, One Normally Closed) contact block provides essential signaling and interlocking capabilities for NEMA Size 00-2, IEC Size A-K, and Definite Purpose contactors rated between 15 and 75 Amps. Engineered for field installation, the C320KGT3 features heavy-duty construction to ensure reliable circuit feedback in demanding industrial and HVACR control panels. Its snap-on design allows for quick mounting without the need for additional tools, minimizing downtime during maintenance or system upgrades. By providing a direct mechanical link to the main contactor's armature, this auxiliary switch ensures precise state detection for pilot lights, control relays, or PLC inputs, making it an indispensable component for complex motor control logic and automated sequencing.
Key Benefits
- Broad Compatibility: Fits Freedom Series NEMA 00-2 and IEC A-K frames, along with 15-75A DP contactors.
- Standard 1NO-1NC Configuration: Provides versatile circuit options for both status indication and safety interlocking.
- Efficient Top-Mount Installation: Saves DIN rail and enclosure space by mounting directly to the face of the contactor.
- Durable Construction: Built for high-cycle industrial applications, ensuring consistent electrical continuity.
- Simple Field Upgrades: Allows technicians to add control circuit functionality to existing power circuits easily.
Common Questions
Can the C320KGT3 be used on Definite Purpose contactors?
Yes, it is compatible with 15 through 75 Amp Definite Purpose (DP) contactors that support the C320 series top-mounted accessories.
What is the difference between side-mounted and top-mounted contacts like the C320KGT3?
Top-mounted contacts like the C320KGT3 attach to the front face of the contactor, preserving lateral space on the mounting panel, whereas side-mounted blocks increase the overall width of the starter assembly.
Is this contact block compatible with non-Eaton contactors?
This component is specifically engineered for Eaton Cutler-Hammer Freedom and DP series hardware; verification of the specific frame size is required for cross-brand applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
