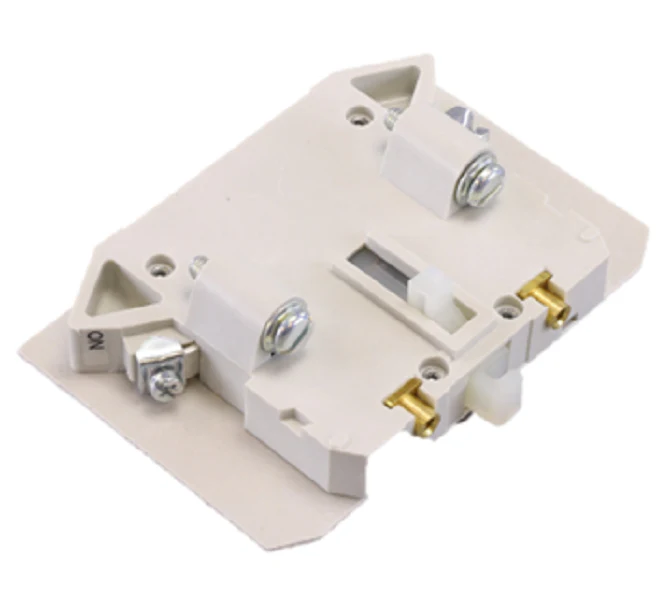

Eaton Cutler-Hammer C320KGS41 Auxiliary Contact
The Eaton Cutler-Hammer C320KGS41 is a high-performance, base auxiliary contact designed for heavy-duty industrial applications. Engineered for the Freedom Series, this normally open (1NO) contact is built to integrate seamlessly with NEMA Size 4 and 5 contactors, as well as IEC Size P through S starters. This side-mount component provides essential circuit signaling and interlocking capabilities, ensuring your motor control center operates with precision and reliability.
Constructed with durable materials to withstand high-vibration environments, the C320KGS41 features a snap-on design for rapid field installation. It is rated for 600VAC and 250VDC, with a 10A continuous thermal current rating, making it a rugged choice for electrical panels and EOEM assemblies. Whether you are replacing a factory-installed unit or expanding your control logic, this auxiliary contact block ensures consistent electrical continuity and mechanical alignment across your Eaton Freedom motor control line.
Key Benefits- Direct Compatibility: Transitions easily between NEMA 4-5 and IEC P-S starters without requiring additional adapters.
- Rugged Electrical Specs: Rated for up to 10A at 600V, providing reliable switching for complex control circuits.
- Effortless Installation: The side-mount base configuration allows for quick "snap-on" attachment to the contactor body.
- Freedom Series Integration: Specifically engineered to match the mechanical stroke and timing of the Eaton Freedom range.
Can I stack multiple auxiliary contacts on one contactor?
Yes, once the base C320KGS41 is installed, additional C320KGS20 (NO) or C320KGS21 (NC) blocks can often be stacked on top, allowing for expanded circuit logic.
Is the C320KGS41 compatible with Size 3 contactors?
No, Size 3 Freedom units typically utilize the C320KGS31. This specific model (C320KGS41) is sized exclusively for NEMA Sizes 4-5 and IEC P-S.
Does this unit come as 1NO or 1NC?
The C320KGS41 part number specifically designates a Normally Open (NO) base contact. If you require a Normally Closed contact, you should look for the C320KGS42 or similar variants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $105.92
-65%$105.92
$37.07Eaton Cutler-Hammer C320KGS41 Auxiliary Contact
The Eaton Cutler-Hammer C320KGS41 is a high-performance, base auxiliary contact designed for heavy-duty industrial applications. Engineered for the Freedom Series, this normally open (1NO) contact is built to integrate seamlessly with NEMA Size 4 and 5 contactors, as well as IEC Size P through S starters. This side-mount component provides essential circuit signaling and interlocking capabilities, ensuring your motor control center operates with precision and reliability.
Constructed with durable materials to withstand high-vibration environments, the C320KGS41 features a snap-on design for rapid field installation. It is rated for 600VAC and 250VDC, with a 10A continuous thermal current rating, making it a rugged choice for electrical panels and EOEM assemblies. Whether you are replacing a factory-installed unit or expanding your control logic, this auxiliary contact block ensures consistent electrical continuity and mechanical alignment across your Eaton Freedom motor control line.
Key Benefits- Direct Compatibility: Transitions easily between NEMA 4-5 and IEC P-S starters without requiring additional adapters.
- Rugged Electrical Specs: Rated for up to 10A at 600V, providing reliable switching for complex control circuits.
- Effortless Installation: The side-mount base configuration allows for quick "snap-on" attachment to the contactor body.
- Freedom Series Integration: Specifically engineered to match the mechanical stroke and timing of the Eaton Freedom range.
Can I stack multiple auxiliary contacts on one contactor?
Yes, once the base C320KGS41 is installed, additional C320KGS20 (NO) or C320KGS21 (NC) blocks can often be stacked on top, allowing for expanded circuit logic.
Is the C320KGS41 compatible with Size 3 contactors?
No, Size 3 Freedom units typically utilize the C320KGS31. This specific model (C320KGS41) is sized exclusively for NEMA Sizes 4-5 and IEC P-S.
Does this unit come as 1NO or 1NC?
The C320KGS41 part number specifically designates a Normally Open (NO) base contact. If you require a Normally Closed contact, you should look for the C320KGS42 or similar variants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
