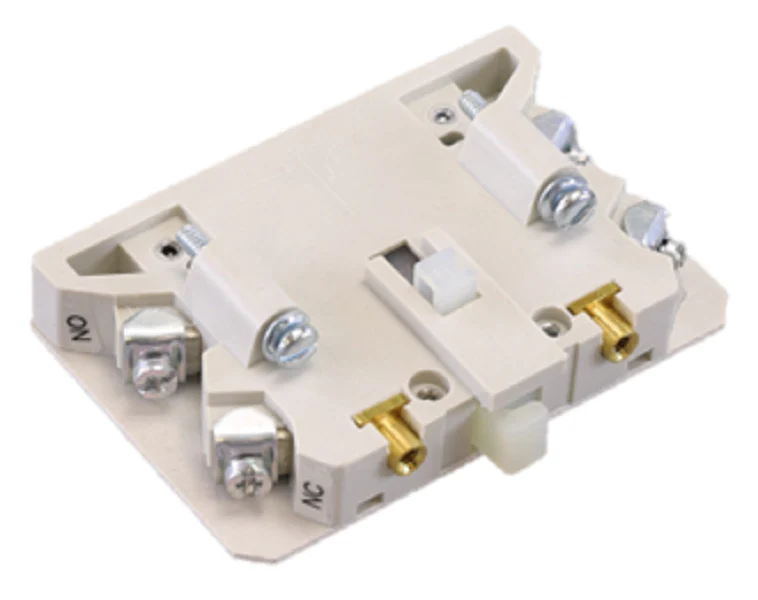

Eaton Cutler-Hammer C320KGS32 Auxiliary Contact
The Eaton Cutler-Hammer C320KGS32 is a heavy-duty base-mount auxiliary contact engineered for integration with Freedom Series NEMA Size 3 starters and IEC Size L through N contractors. This dual-circuit block features a 1NO-1NC (1 Normally Open / 1 Normally Closed) configuration, providing reliable signaling and electrical interlocking for complex motor control circuits. Built with silver-cadmium oxide contacts, the C320KGS32 ensures high conductivity and arc resistance under demanding industrial loads. Its snap-on mounting design allows for rapid field installation without the need for additional tools or hardware. This C320 Series contact block is essential for HVACR technicians requiring side-mounted auxiliary contacts to feedback status to PLCs or pilot lights, ensuring precise motor starter status monitoring. Designed to meet UL and CSA standards, this component maintains system integrity and operational safety in high-cycle applications.
Key Benefits:
- Dual-Circuit Logic: Provides simultaneous 1NO and 1NC contact state changes for versatile control sequencing.
- Freedom Series Compatibility: Optimized for a precise fit on Size 3 NEMA starters and IEC L-N frames.
- Industrial Durability: Rated for high AC-15 and DC-13 thermal currents to handle inductive pilot duties.
- Direct Base Mounting: Secures firmly to the contactor housing, eliminating vibration-induced nuisance tripping.
Common Questions:
Does this contact block support top-mounting?
No, the C320KGS32 is specifically designed as a base-mounted auxiliary; for top-mounted requirements, refer to the C320KGS1 or KGS2 series.
Is the NC contact late-break or standard?
This unit features standard break-before-make contact operation, ensuring clear separation between the NO and NC circuits during transition.
Can this be used on smaller Size 00-2 starters?
This specific model is sized for NEMA Size 3 and IEC Sizes L-N; smaller frames require the KGS20 or KGS21 variants for proper mechanical alignment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
