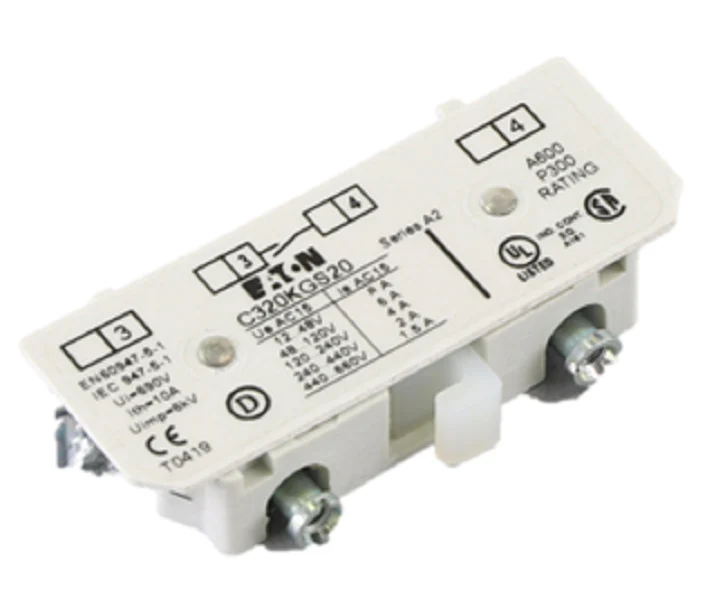

Eaton Cutler-Hammer C320KGS20 Auxiliary Contact
The Eaton Cutler-Hammer C320KGS20 is a side-mounted auxiliary contact block designed for heavy-duty switching applications. Engineered for seamless integration with Freedom Series starters and contactors, this unit provides two Normally Open (NO) circuits to facilitate sophisticated interlocking, remote signaling, or status monitoring. It is specifically rated for NEMA Size 3 through 5 starters and IEC Size L through S frames, as well as Definite Purpose contactors ranging from 120A to 360A. Built to withstand the rigors of industrial environments, the C320KGS20 auxiliary contact ensures reliable low-level signal continuity and high-amperage pilot duty performance. The snap-on design allows for rapid field installation without the need for specialized tools, providing an efficient solution for expanding control circuit capabilities in HVACR and motor control centers. Professional-grade construction ensures these motor control accessories maintain precise mechanical alignment over thousands of cycles.
Key Benefits for the Field- Broad Compatibility: Fits NEMA Sizes 3-5 and IEC Frames L-S, reducing the need for multiple stock units.
- Definite Purpose Integration: Validated for use with high-amp 120A-360A contactors commonly found in large-scale HVAC systems.
- Snap-Fit Installation: Side-mount architecture allows for quick auxiliary contact replacement or field upgrades.
- Reliable Logic Feedback: Dual 2NO contact configuration provides redundant signaling or simultaneous control of multiple circuits.
- Industrial Durability: Manufactured by Eaton Cutler-Hammer to meet stringent NEMA/IEC standards for electrical longevity.
How do I verify the contact configuration for my circuit?
The C320KGS20 features two Normally Open (13-14 and 23-24) contacts. For applications requiring a Normally Closed signal, verify the part number against the starter series to ensure the correct logic output is achieved.
Can these auxiliary contacts be stacked?
These side-mounted blocks are designed to attach directly to the starter or contactor frame. Always consult the Eaton Freedom Series wiring diagram to confirm the maximum allowable auxiliary contact attachments for your specific frame size.
Will this work with older Westinghouse or Advantage series starters?
The C320KGS20 is primarily engineered for the Freedom Series and specific Definite Purpose controllers. While mounting footprints may appear similar, check the mechanical actuator arm alignment to ensure proper switching before energizing the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
