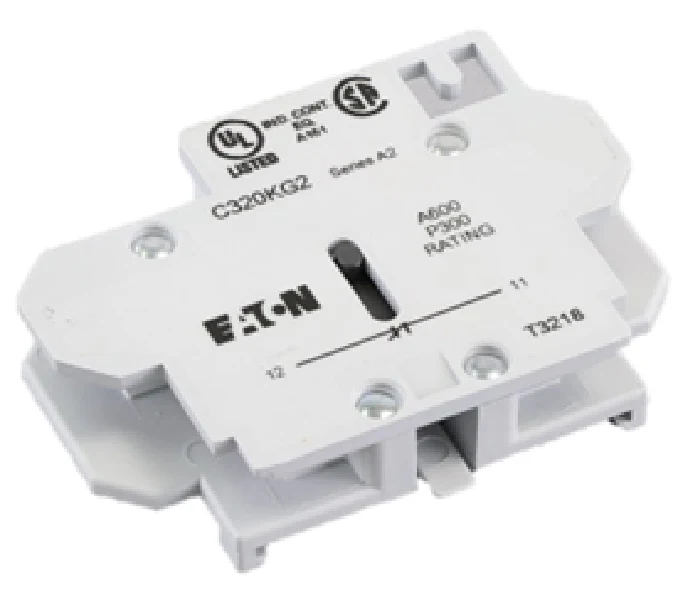

Eaton Cutler-Hammer C320KG2 Auxiliary Contact
The Eaton Cutler-Hammer C320KG2 is a side-mounted normally closed (NC) auxiliary contact designed for seamless integration with definite purpose contactors ranging from 15A to 75A. Engineered for field installation, this component provides reliable pilot circuit control and signaling for HVACR systems. The side-mount configuration allows for easy attachment without increasing the vertical footprint of the contactor. Featuring standard pressure plate terminals, the C320KG2 ensures secure wire terminations capable of withstanding the vibration common in compressor and fan motor applications. As a genuine C320 Series auxiliary, it maintains high electrical conductivity and precise mechanical interlocking with Eaton DP contactors. Utilizing this auxiliary switch enables technicians to implement interlocks, status indicators, or secondary control logic efficiently. Its rugged construction ensures long-term performance in demanding industrial and commercial environments where consistent interrupting capacity and circuit isolation are required for proper system diagnostics and safety.
Key Benefits for Technicians- Universal Compatibility: Specifically designed for Eaton C25 Definite Purpose Contactors from 15A through 75A.
- Simplified Installation: Side-mount design snaps onto the base contactor, reducing labor time during field modifications.
- Refined Connectivity: Standard pressure plate terminals provide a reliable connection for control wiring, preventing loose contacts in high-cycle applications.
- Flexible Control Logic: Provides one functional Normally Closed (NC) contact for safety interlocks or remote monitoring signals.
- Can this be used for motor starting? No, current ratings for the C320KG2 are intended for pilot duty or control circuit signaling, not for handling primary motor loads.
- Does this fit all contactor brands? This auxiliary contact is specifically engineered for Eaton Cutler-Hammer frames; verify the mounting channel before attempting to use it on third-party hardware.
- How many can be mounted per contactor? Depending on the contactor frame, you can typically mount one on each side, though side-mounted auxiliary configurations may vary by specific amperage ratings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
