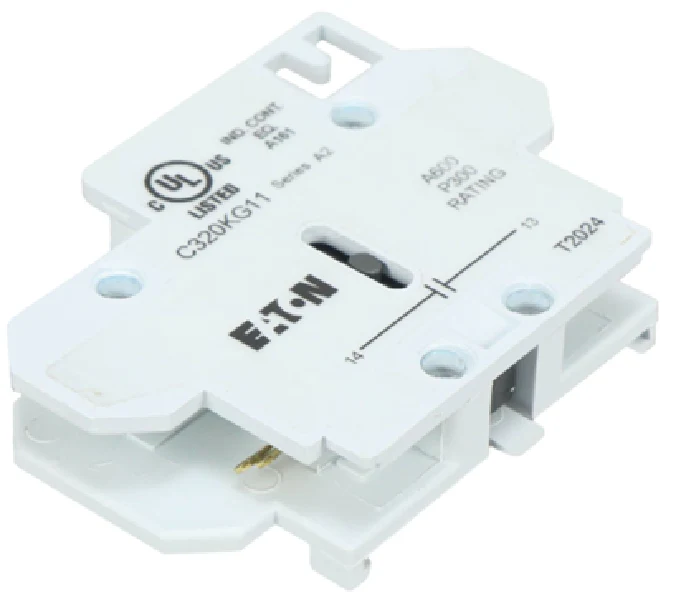

Eaton Cutler-Hammer C320KG11 Auxiliary Contact
The Eaton Cutler-Hammer C320KG11 is a side-mounted auxiliary contact engineered for seamless integration with definite purpose contactors ranging from 15A to 75A. Designed for high-reliability signaling and interlocking, this 1NO auxiliary switch features pressure plate terminals and quick connect terminals, ensuring a secure and efficient electrical connection during field installations. As a critical HVAC control component, it provides real-time feedback for pilot duty applications and motor starter monitoring. The 11-style configuration allows for easy snap-on mounting without requiring additional tools, reducing labor time for contractors. This Eaton C320KG11 is built to withstand the demanding duty cycles of industrial and commercial HVACR systems, providing a dependable normally open contact path to maintain system logic and equipment protection. Whether you are replacing a failed C320KG11 side mount or upgrading a DP contactor for auxiliary signaling, this unit ensures precision alignment and low-resistance conductivity in diverse environmental conditions.
Key Benefits for the Field- Universal Compatibility: Fits 15A through 75A frames, simplifying inventory for definite purpose contactor accessories.
- Secure Termination: Features pressure plate mechanics to prevent wire pull-out and ensure consistent voltage across the normally open contact.
- Reduced Installation Depth: The side-mounted design maximizes cabinet space compared to top-mounted alternatives.
- High-Impact Housing: Constructed from rugged materials to resist heat and mechanical stress in commercial HVAC applications.
- OEM Reliability: Direct Eaton Cutler-Hammer replacement ensuring exact mechanical tolerances and timing alignment with the main poles.
Is the C320KG11 field-reversible for high-current loads?
This auxiliary contact block is specifically rated for pilot duty and control circuit signaling. For high-current switching, use the main poles of the DP contactor.
Can I install two C320KG11 contacts on a single contactor?
Yes, typical 15A-75A Eaton DP contactors support side-mounting on both the left and right sides to provide dual 1NO auxiliary feedback loops.
Do the quick connect terminals support standard 1/4" female spade connectors?
Absolutely. The C320KG11 includes industry-standard quick connect terminals for rapid HVAC control wiring in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
