Eaton Cutler-Hammer C306TB2B Mounting Kit

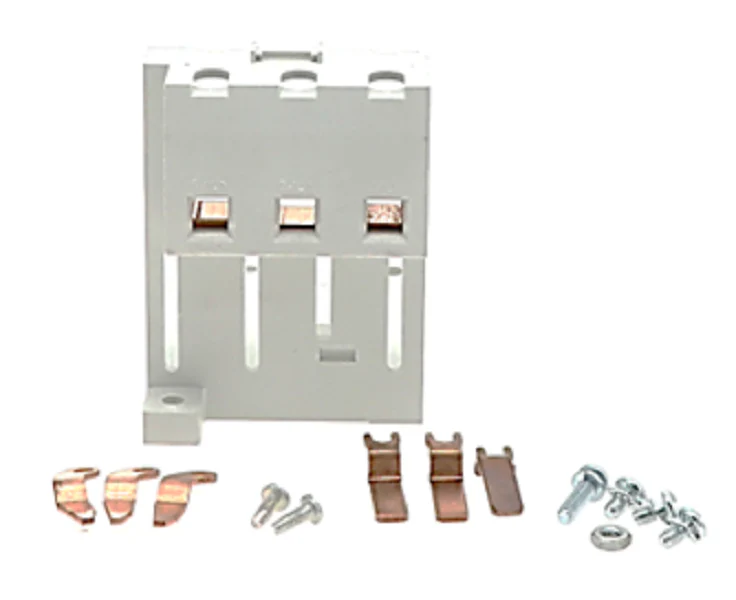

The Eaton Cutler-Hammer C306TB2B Mounting Kit is a heavy-duty DIN rail and panel mounting adapter specifically engineered for Freedom Series thermal overload relays. Designed for high-amperage motor control applications, this C306 mounting base allows for the remote mounting of 75 Amp overload relays (Series A or B), providing the flexibility needed when direct connection to a contactor is not feasible due to space constraints or custom control panel layouts. This kit ensures a secure, vibration-resistant attachment using standard 35mm DIN rail or direct-surface panel screws, maintaining the integrity of your motor protection circuit.
As a veteran tech, you know that managing heat and space in a NEMA enclosure is critical. This industrial control accessory facilitates an organized NEMA motor starter assembly by separating the overload relay from the contactor frame. By utilizing the C306TB2B, contractors can achieve a cleaner wire run and improved airflow within the cabinet. It is built with high-strength, impact-resistant insulating materials that meet the rigorous demands of 72A Freedom Series environments, ensuring long-term reliability in motor power control applications.
Key Benefits for the Contractor:
- Compatible with both Series A and Series B Freedom Overload Relays up to 75 Amps.
- Dual-purpose design supports both 35mm DIN rail mounting and traditional panel mount configurations.
- Reduces installation time in complex motor control center retrofits by simplifying remote relay positioning.
- Robust construction ensures the mounting kit stands up to high-vibration industrial settings.
- Streamlines maintenance by allowing easier access to relay trip settings and reset buttons.
Common Questions Regarding the C306TB2B:
Does this kit include the overload relay?
No, this is the mounting adapter only; the 75 Amp thermal overload relay must be purchased separately to complete the assembly.
Can I use this with electronic overload relays?
While designed primarily for the C306 bimetallic overload, always verify the specific frame size; typically, electronic units like the C440 have their own dedicated standalone mounting options.
What is the maximum amperage rating for this base?
This specific adapter is rated for 75 Amp applications, typically used with NEMA Size 2 starters and associated relays.
