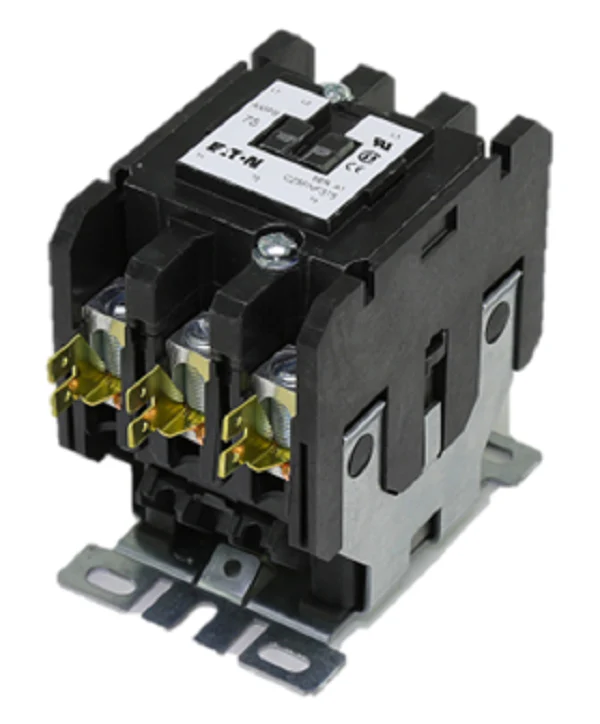

Eaton Cutler-Hammer C25FNF375B Contactor
The Eaton Cutler-Hammer C25FNF375B is a robust, 3-pole definite purpose contactor engineered for rigorous HVACR and industrial motor control applications. This 75 amp contactor features a 208/240Vac 50/60Hz coil and is rated for up to 600VAC, making it a reliable choice for high-demand compressors and heating elements. Built with a non-reversing design and an open type enclosure, the unit includes a heavy-duty metal mounting plate for secure installation in control panels. Technical specifications include a 75 FLA (Full Load Amps) inductive rating and a 90 amp resistive rating, ensuring it handles both motor and resistive heating loads with minimal arcing. The C25FNF375B utilizes box lugs and quick connect terminals (side-by-side) to streamline field wiring and reduce downtime. This Eaton C25 series component is a direct electrical equivalent for many OEM parts, providing consistent switching performance in demanding environments.
Key Benefits
- High Current Capacity: Rated for 75 Amps inductive and 90 Amps resistive loads, suitable for large-scale commercial HVAC units.
- Versatile Coil Compatibility: Dual-frequency 208/240V AC coil operates efficiently at both 50Hz and 60Hz.
- Industrial Durability: Features double-break contacts and a metal mounting plate for superior heat dissipation and structural integrity.
- Flexible Wiring: Equipped with both box lugs (posidrive setscrew) and quick connect terminals for rapid contractor installation.
- Safety Certifications: UL Recognized and CSA Certified for professional-grade electrical compliance.
Common Questions
What is the maximum horsepower rating for this contactor?
The Eaton C25FNF375B is rated for approximately 15 HP at 230V 1-phase and up to 50 HP at 460/600V 3-phase applications.
Can I add auxiliary contacts to this model?
Yes, this 3-pole contactor is compatible with Eaton snap-on auxiliary contact blocks for additional signaling and interlocking requirements.
Is this unit a suitable replacement for a Furnas 42EF35AG contactor?
Yes, the C25FNF375B is a direct electrical and functional cross-reference for the Furnas 42EF35AG series.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.42
-65%$175.42
$61.40Eaton Cutler-Hammer C25FNF375B Contactor
The Eaton Cutler-Hammer C25FNF375B is a robust, 3-pole definite purpose contactor engineered for rigorous HVACR and industrial motor control applications. This 75 amp contactor features a 208/240Vac 50/60Hz coil and is rated for up to 600VAC, making it a reliable choice for high-demand compressors and heating elements. Built with a non-reversing design and an open type enclosure, the unit includes a heavy-duty metal mounting plate for secure installation in control panels. Technical specifications include a 75 FLA (Full Load Amps) inductive rating and a 90 amp resistive rating, ensuring it handles both motor and resistive heating loads with minimal arcing. The C25FNF375B utilizes box lugs and quick connect terminals (side-by-side) to streamline field wiring and reduce downtime. This Eaton C25 series component is a direct electrical equivalent for many OEM parts, providing consistent switching performance in demanding environments.
Key Benefits
- High Current Capacity: Rated for 75 Amps inductive and 90 Amps resistive loads, suitable for large-scale commercial HVAC units.
- Versatile Coil Compatibility: Dual-frequency 208/240V AC coil operates efficiently at both 50Hz and 60Hz.
- Industrial Durability: Features double-break contacts and a metal mounting plate for superior heat dissipation and structural integrity.
- Flexible Wiring: Equipped with both box lugs (posidrive setscrew) and quick connect terminals for rapid contractor installation.
- Safety Certifications: UL Recognized and CSA Certified for professional-grade electrical compliance.
Common Questions
What is the maximum horsepower rating for this contactor?
The Eaton C25FNF375B is rated for approximately 15 HP at 230V 1-phase and up to 50 HP at 460/600V 3-phase applications.
Can I add auxiliary contacts to this model?
Yes, this 3-pole contactor is compatible with Eaton snap-on auxiliary contact blocks for additional signaling and interlocking requirements.
Is this unit a suitable replacement for a Furnas 42EF35AG contactor?
Yes, the C25FNF375B is a direct electrical and functional cross-reference for the Furnas 42EF35AG series.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
