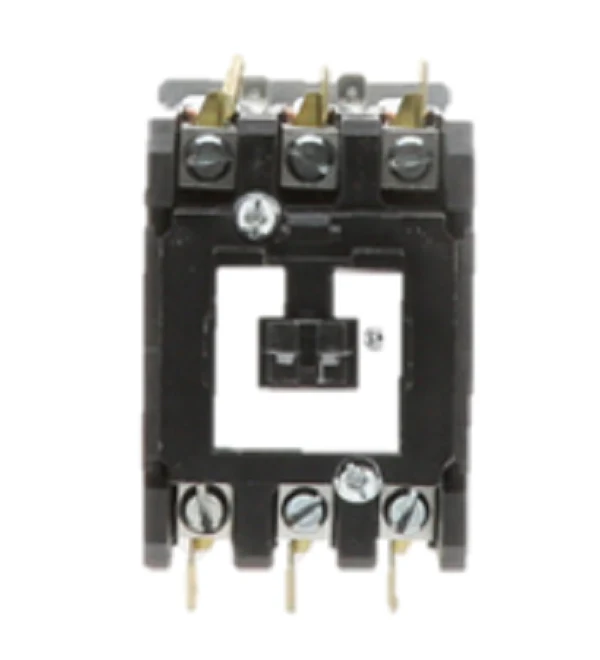

Eaton Cutler-Hammer C25FNF375A Contactor
The Eaton Cutler-Hammer C25FNF375A is a commercial-grade 3-pole definite purpose contactor engineered for demanding HVACR and industrial motor control applications. Rated for 75 amps inductive load and 93 amps resistive, this non-reversing contactor features an open type enclosure designed for streamlined integration into existing control panels. It operates on a 110/120Vac 50/60Hz coil voltage, providing reliable switching for heavy-duty compressors, pumps, and heating elements. The rugged metal mounting plate ensures structural integrity under high-vibration conditions, while the box lugs with posh-to-lift terminals facilitate secure field wiring with large-gauge conductors. As a direct replacement for many OEM C25 series contactors, this unit is optimized for inductive load switching where durability and arc suppression are critical. Its compact frame allows for efficient heat dissipation, maintaining performance during high-cycle operations in extreme environments.
Key Benefits- High Ampacity Rating: Durable 75A inductive capacity handles high-current draws for large commercial HVAC units.
- Standardized Coil Voltage: The 110/120V AC coil allows for easy compatibility with most standard control circuits.
- Robust Construction: Equipped with a heavy-duty metal mounting plate for secure installation and grounding.
- Field-Proven Reliability: Designed specifically for definite purpose applications, ensuring consistent performance in high-cycle motor starting.
What is the maximum horsepower rating for the C25FNF375A?
This 3-pole contactor is typically rated for up to 25 HP at 240V and 50 HP at 480/600V, making it suitable for larger three-phase motor loads.
Can the coil be replaced if it burns out?
Yes, the C25 series allows for coil replacement or the addition of auxiliary contacts, though many technicians prefer replacing the entire unit to ensure fresh contacts.
Does this unit include terminal lugs?
Yes, it features box lugs designed to accept large copper or aluminum wire, providing a low-resistance connection for high-amperage draws.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.42
-65%$175.42
$61.40Eaton Cutler-Hammer C25FNF375A Contactor
The Eaton Cutler-Hammer C25FNF375A is a commercial-grade 3-pole definite purpose contactor engineered for demanding HVACR and industrial motor control applications. Rated for 75 amps inductive load and 93 amps resistive, this non-reversing contactor features an open type enclosure designed for streamlined integration into existing control panels. It operates on a 110/120Vac 50/60Hz coil voltage, providing reliable switching for heavy-duty compressors, pumps, and heating elements. The rugged metal mounting plate ensures structural integrity under high-vibration conditions, while the box lugs with posh-to-lift terminals facilitate secure field wiring with large-gauge conductors. As a direct replacement for many OEM C25 series contactors, this unit is optimized for inductive load switching where durability and arc suppression are critical. Its compact frame allows for efficient heat dissipation, maintaining performance during high-cycle operations in extreme environments.
Key Benefits- High Ampacity Rating: Durable 75A inductive capacity handles high-current draws for large commercial HVAC units.
- Standardized Coil Voltage: The 110/120V AC coil allows for easy compatibility with most standard control circuits.
- Robust Construction: Equipped with a heavy-duty metal mounting plate for secure installation and grounding.
- Field-Proven Reliability: Designed specifically for definite purpose applications, ensuring consistent performance in high-cycle motor starting.
What is the maximum horsepower rating for the C25FNF375A?
This 3-pole contactor is typically rated for up to 25 HP at 240V and 50 HP at 480/600V, making it suitable for larger three-phase motor loads.
Can the coil be replaced if it burns out?
Yes, the C25 series allows for coil replacement or the addition of auxiliary contacts, though many technicians prefer replacing the entire unit to ensure fresh contacts.
Does this unit include terminal lugs?
Yes, it features box lugs designed to accept large copper or aluminum wire, providing a low-resistance connection for high-amperage draws.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
