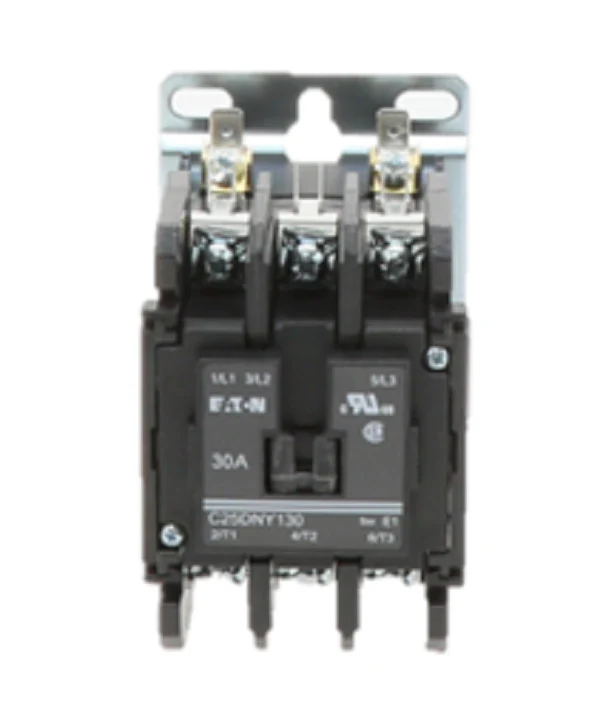

Eaton Cutler-Hammer C25DNY130 Contactor
The Eaton Cutler-Hammer C25DNY130 Contactor is a non-reversing, 3-pole definite purpose contactor engineered for demanding HVACR applications. Operating with a 208-240V AC coil, this component is designed to manage 30A inductive loads and up to 40A resistive loads, making it a reliable choice for 3-phase motor control and electric heating circuits. Built with an open enclosure and a durable metal mounting plate, the C25DNY130 features double-break contacts and a Class B magnetic coil, ensuring high thermal stability and consistent switching performance under frequent cycling. This Eaton 30 amp contactor is specifically optimized for commercial refrigeration, air conditioning units, and heat pumps. Its compact frame size and direct-on-line (DOL) capability allow for seamless integration into existing control panels while meeting UL Recognized and CSA Certified safety standards for professional electrical installations.
Key Benefits
- Versatile Voltage Support: The 208-240V AC coil voltage provides compatibility with standard commercial and industrial power supplies.
- High Current Capacity: Rated for a 30A inductive full load (IFL) and 40A resistive load (RL), handling rigorous motor-starting requirements.
- Robust Construction: Features 3 NO (Normally Open) poles with double-break contacts to minimize arcing and extend the service life of the contacts.
- Quick Installation: Equipped with a metal mounting plate and dual quick-connect terminals for fast field wiring and replacement.
- Industry Compliance: Tested and certified to meet UL and CSA standards, ensuring the safety and reliability required by technical contractors.
Common Questions
Can the C25DNY130 handle 1-phase or 3-phase loads?
While this is a 3-pole contactor designed for 3-phase applications, it can be utilized for single-phase loads by using the appropriate number of poles, provided the amperage ratings are not exceeded.
What is the difference between inductive and resistive ratings for this part?
The inductive rating of 30A applies to motors and compressors where current surges occur, while the 40A resistive rating applies to constant loads like electric heating elements.
Is this contactor suitable for use with new A2L refrigerants?
Yes, the Eaton C25 series is certified for use in systems utilizing A2L refrigerants, meeting the latest HVACR industry safety requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
