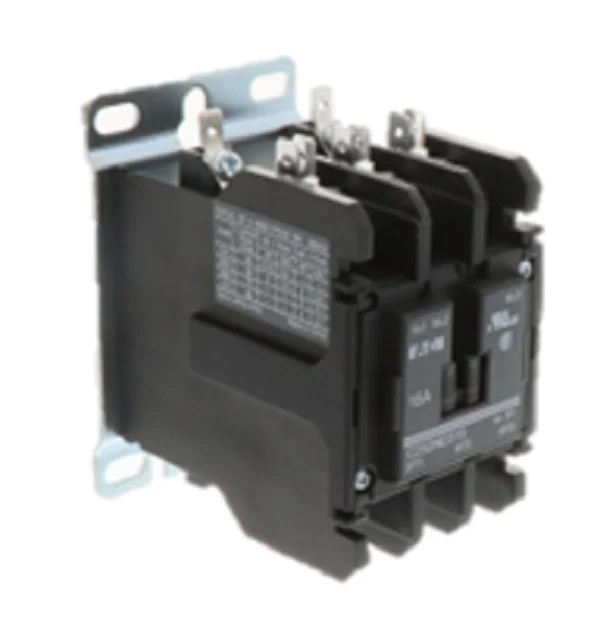

Eaton Cutler-Hammer C25DND315T Contactor
The Eaton Cutler-Hammer C25DND315T Contactor is a robust 3-pole definite purpose contactor engineered for consistent motor control in demanding HVACR and industrial environments. This 15-amp non-reversing contactor features a 24Vac 50/60Hz coil voltage, providing reliable switching for inductive loads of 15A and resistive loads up to 20A. Designed with a compact open-type enclosure and a durable metal mounting plate, it ensures secure installation and efficient heat dissipation in control panels. The unit utilizes side-by-side screw/pressure plate and quick connect terminals, streamlining field wiring for technicians and reducing maintenance downtime. Built to meet UL Recognized and CSA Certified standards, this C25 series frame size D component is ideal for three-phase applications where space and reliability are critical. Whether you are servicing a commercial air conditioning unit or a specialized refrigeration system, the C25DND315T provides the high-performance switching required for low-cycle duty motor starting and heating loads.
Key Benefits:- Enhanced Connectivity: Features dual-terminal options with screw/pressure plates and 1/4-inch quick connects for versatile installation.
- Industrial Durability: The metal mounting plate and open-style frame are built to withstand the rigorous vibration and thermal cycles of HVACR equipment.
- Multi-Phase Compatibility: Efficiently manages three-phase systems and is rated for a 600V maximum operating voltage.
- Reliable Coil Performance: The 24V AC coil is optimized for precise engagement, minimizing contact arcing and extending electrical life.
- What is the difference between the inductive and resistive ratings? This contactor is rated for a 15A inductive full load (motors) and a 20A resistive load (electric heat), making it a versatile choice for mixed-application service.
- Can this replace a 2-pole contactor? While a 3-pole contactor can often handle 2-pole tasks by leaving one pole unused, always verify the C25 series frame size and mounting footprint for physical compatibility before installation.
- What terminal types are supported? It supports both side-by-side quick connects and pressure plate screws, allowing for standard ring terminals or direct wire insertion.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
