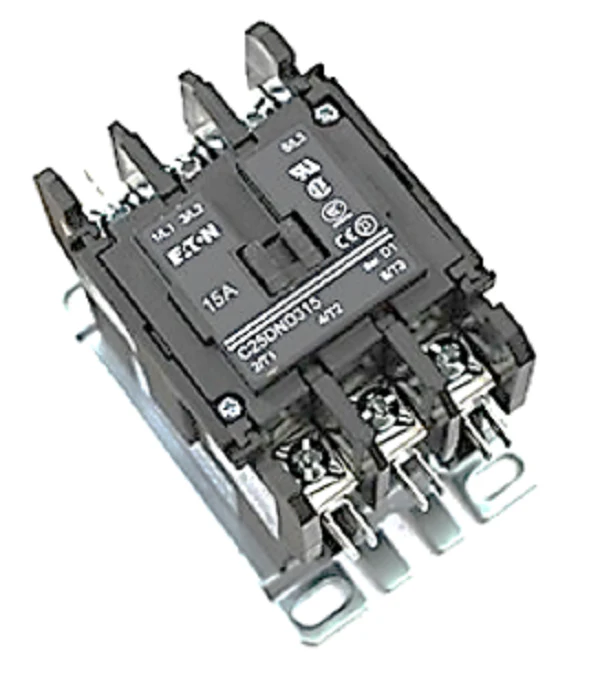

Eaton Cutler-Hammer C25DND315A Contactor
The Eaton Cutler-Hammer C25DND315A is a commercial-grade 3-pole definite purpose contactor designed for high-cycle motor control in HVACR and light industrial systems. Engineered for reliability, this non-reversing contactor features a 15 Amp inductive full-load rating and a 20 Amp resistive rating, making it a standard choice for compressors, fans, and resistance heating. The 110/120V AC coil (50/60Hz) ensures compatibility with common control circuits, while the open type enclosure with a durable metal mounting plate allows for straightforward panel installation. This Eaton C25 series component utilizes screw/pressure plate terminals alongside side-by-side quick connect terminals, providing technicians with versatile wiring options in the field. Built to withstand the rigors of demanding environments, the C25DND315A maintains contact integrity during frequent switching cycles, ensuring long-term performance in commercial HVAC applications and refrigeration motor control panels.
Key Benefits- Versatile Wiring: Equipped with both screw/pressure plates and 1/4-inch quick connect terminals for flexible field integration.
- Durable Construction: Features a robust metal mounting plate and double-break contacts to handle inductive loads up to 15A.
- Industry Standard Compatibility: The 120V AC coil and 3-pole configuration make it a direct replacement for many OEM HVACR control systems.
- HVACR Optimized: Specifically designed for the low-cycle duty requirements of heating, ventilation, and air conditioning equipment.
Is the Eaton C25DND315A compatible with 24V control systems?
No, this specific model is wound with a 110/120V AC coil. If your control circuit uses 24V, you will need a coil rated for that specific voltage to prevent component failure.
What is the maximum horsepower rating for this 3-pole contactor?
The C25DND315A is typically rated for up to 3HP at 240V and 5HP at 480/600V for three-phase applications, though always verify against the specific FLA of your motor.
Can I use this contactor for single-phase loads?
Yes, while it is a 3-pole device, it can be utilized for single-phase loads by using the necessary number of poles as dictated by local electrical codes and application requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
