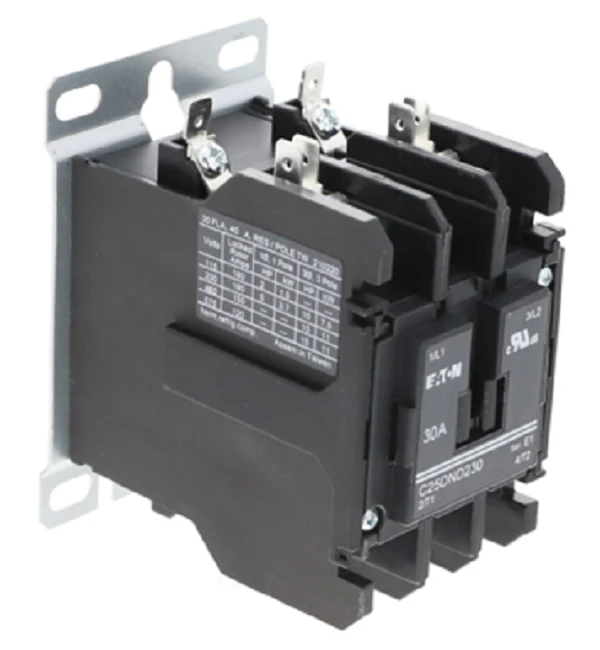

Eaton Cutler-Hammer C25DND230T Contactor
The Eaton Cutler-Hammer C25DND230T is a robust 2-pole definite purpose contactor designed for high-cycle industrial and HVACR applications. Engineered with a 24Vac 50/60Hz coil voltage, this 30-amp inductive (40-amp resistive) component provides reliable switching for compressors, motors, and heating elements. Built on a D Frame size, it features an open type enclosure with a heavy-duty metal mounting plate that ensures stability during operation and simplifies panel installations. The non-reversing design utilizes double quick connect terminals and side-by-side screw/pressure plates, offering the versatility required for field replacements or new OEM builds. This unit is UL recognized and CSA certified, meeting stringent ARI 780 standards for performance and longevity in demanding environments. Whether you are servicing a commercial air conditioner or a commercial refrigeration rack, this DP contactor delivers the electrical integrity and mechanical endurance expected from Eaton electrical components.
Key Benefits:- Universal Compatibility: The integrated metal mounting plate features a standard hole pattern, making it an ideal drop-in replacement for competitive 30A 24V contactors.
- Enhanced Connection Options: Equipped with both screw terminals and side-by-side quick connects to accommodate various wiring configurations found in the field.
- Industrial Durability: Rated for 180A locked rotor amps (LRA) at 230V, ensuring the contactor contacts can handle high inrush currents without premature welding.
- Maintenance Friendly: The open frame design allows for clear visual inspection of the contacts and easy access for testing coil resistance.
- Can I use a 30A contactor to replace a 25A model? Yes, upward compatibility is standard. A 30A inductive rating provides a higher safety margin for smaller loads, provided the 24V coil voltage and physical footprint match.
- Is this contactor suitable for A2L refrigerant systems? Yes, this series is UL-certified for use in modern HVACR equipment utilizing A2L mildly flammable refrigerants.
- What causes the "chattering" sound in a 24V contactor? Chattering is typically caused by low control voltage (below 20VAC) or debris in the magnet assembly. Always check your 24V transformer output at the coil terminals under load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $51.87
-65%$51.87
$18.15Eaton Cutler-Hammer C25DND230T Contactor
The Eaton Cutler-Hammer C25DND230T is a robust 2-pole definite purpose contactor designed for high-cycle industrial and HVACR applications. Engineered with a 24Vac 50/60Hz coil voltage, this 30-amp inductive (40-amp resistive) component provides reliable switching for compressors, motors, and heating elements. Built on a D Frame size, it features an open type enclosure with a heavy-duty metal mounting plate that ensures stability during operation and simplifies panel installations. The non-reversing design utilizes double quick connect terminals and side-by-side screw/pressure plates, offering the versatility required for field replacements or new OEM builds. This unit is UL recognized and CSA certified, meeting stringent ARI 780 standards for performance and longevity in demanding environments. Whether you are servicing a commercial air conditioner or a commercial refrigeration rack, this DP contactor delivers the electrical integrity and mechanical endurance expected from Eaton electrical components.
Key Benefits:- Universal Compatibility: The integrated metal mounting plate features a standard hole pattern, making it an ideal drop-in replacement for competitive 30A 24V contactors.
- Enhanced Connection Options: Equipped with both screw terminals and side-by-side quick connects to accommodate various wiring configurations found in the field.
- Industrial Durability: Rated for 180A locked rotor amps (LRA) at 230V, ensuring the contactor contacts can handle high inrush currents without premature welding.
- Maintenance Friendly: The open frame design allows for clear visual inspection of the contacts and easy access for testing coil resistance.
- Can I use a 30A contactor to replace a 25A model? Yes, upward compatibility is standard. A 30A inductive rating provides a higher safety margin for smaller loads, provided the 24V coil voltage and physical footprint match.
- Is this contactor suitable for A2L refrigerant systems? Yes, this series is UL-certified for use in modern HVACR equipment utilizing A2L mildly flammable refrigerants.
- What causes the "chattering" sound in a 24V contactor? Chattering is typically caused by low control voltage (below 20VAC) or debris in the magnet assembly. Always check your 24V transformer output at the coil terminals under load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
