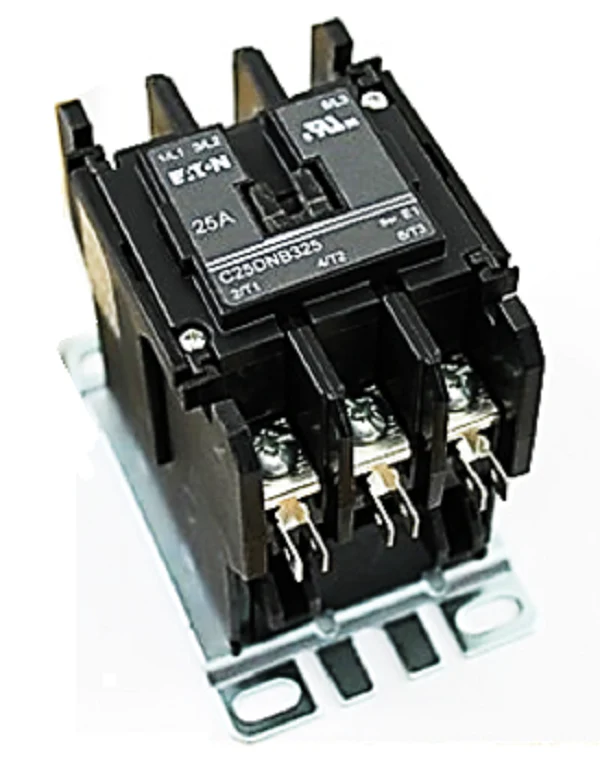

Eaton Cutler-Hammer C25DNB325T Contactor
The Eaton Cutler-Hammer C25DNB325T is a robust 3-pole definite purpose contactor engineered for demanding HVACR and industrial applications. Built with a 25-amp inductive rating and a 35-amp resistive capacity, this non-reversing unit operates on a 24Vac 50/60Hz coil voltage. It features an open-type enclosure mounted on a heavy-duty metal plate, ensuring stability during high-vibration operations. The C25DNB325T is designed for compatibility with motors and compressors requiring reliable switching, utilizing a compact frame that fits standard footprints for streamlined field replacement. The inclusion of screw/pressure plate terminals and quick connect lugs allows for secure wiring and lower contact resistance. Technicians will find the dual-cycle rating (50/60Hz) ideal for maintaining performance consistency across varying power supply frequencies while handling locked-rotor currents up to 150 amps at 240V.
Key Benefits- Versatile 3-Pole Configuration: Handles multiple load legs simultaneously for 3-phase motor control.
- Definite Purpose Reliability: Engineered specifically for HVAC/R equipment, including air conditioners and refrigeration units.
- Enhanced Durability: Metal mounting plate provides superior rigidity compared to plastic alternatives.
- Standardized Footprint: Simplifies the swap-out of aging DP contactors in residential and light commercial units.
- High Inrush Capacity: Manages high start-up currents typical of inductive loads without premature contact pitting.
What is the difference between inductive and resistive ratings on this contactor?
The 25A inductive rating applies to motor loads where inrush current is present, while the 35A resistive rating applies to non-inductive loads like electric heat strips.
Can I use the C25DNB325T to replace a 2-pole contactor?
While technically possible to use two legs of a 3-pole contactor, it is best practice to match the pole count of the original OEM specification for proper circuit protection and wiring alignment.
Does this unit include auxiliary contacts?
The standard C25DNB325T comes as shown; however, the Eaton C25 series frame allows for the field installation of side-mounted auxiliary switches if your control circuit requires them.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $139.61
-65%$139.61
$48.86Eaton Cutler-Hammer C25DNB325T Contactor
The Eaton Cutler-Hammer C25DNB325T is a robust 3-pole definite purpose contactor engineered for demanding HVACR and industrial applications. Built with a 25-amp inductive rating and a 35-amp resistive capacity, this non-reversing unit operates on a 24Vac 50/60Hz coil voltage. It features an open-type enclosure mounted on a heavy-duty metal plate, ensuring stability during high-vibration operations. The C25DNB325T is designed for compatibility with motors and compressors requiring reliable switching, utilizing a compact frame that fits standard footprints for streamlined field replacement. The inclusion of screw/pressure plate terminals and quick connect lugs allows for secure wiring and lower contact resistance. Technicians will find the dual-cycle rating (50/60Hz) ideal for maintaining performance consistency across varying power supply frequencies while handling locked-rotor currents up to 150 amps at 240V.
Key Benefits- Versatile 3-Pole Configuration: Handles multiple load legs simultaneously for 3-phase motor control.
- Definite Purpose Reliability: Engineered specifically for HVAC/R equipment, including air conditioners and refrigeration units.
- Enhanced Durability: Metal mounting plate provides superior rigidity compared to plastic alternatives.
- Standardized Footprint: Simplifies the swap-out of aging DP contactors in residential and light commercial units.
- High Inrush Capacity: Manages high start-up currents typical of inductive loads without premature contact pitting.
What is the difference between inductive and resistive ratings on this contactor?
The 25A inductive rating applies to motor loads where inrush current is present, while the 35A resistive rating applies to non-inductive loads like electric heat strips.
Can I use the C25DNB325T to replace a 2-pole contactor?
While technically possible to use two legs of a 3-pole contactor, it is best practice to match the pole count of the original OEM specification for proper circuit protection and wiring alignment.
Does this unit include auxiliary contacts?
The standard C25DNB325T comes as shown; however, the Eaton C25 series frame allows for the field installation of side-mounted auxiliary switches if your control circuit requires them.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
