Eaton Cutler-Hammer C25BNB230A Contactor

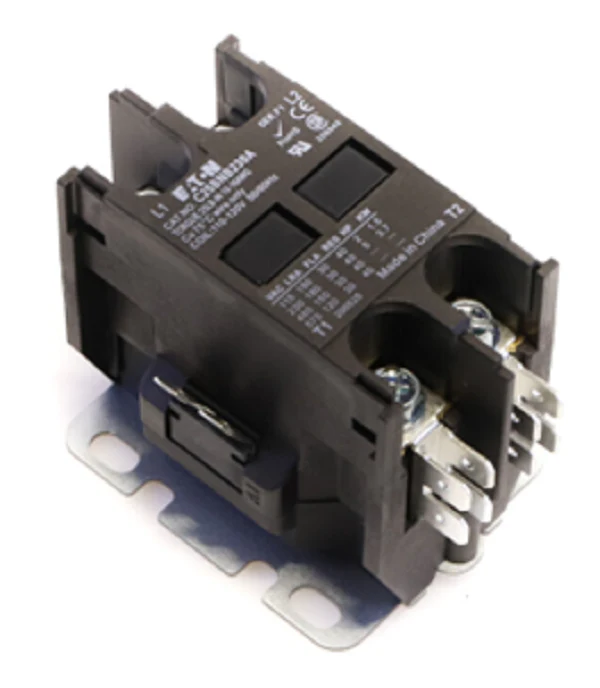

The Eaton Cutler-Hammer C25BNB230A Contactor is a heavy-duty 2-pole definite purpose contactor engineered specifically for the demanding environments of HVACR systems. Designed for non-reversing motor control, this 30 Amp inductive (40 Amp resistive) unit operates on a standard 110-120Vac 50/60Hz coil voltage, making it a drop-in reliable solution for commercial refrigeration and air conditioning maintenance. The C25BNB230A features a compact frame with an open-type enclosure, allowing for efficient heat dissipation and easy wiring in tight control panels. Its integrated metal mounting plate ensures a rigid, vibration-resistant installation on flat surfaces or within standard enclosures. Built to withstand environmental stressors, the contacts are rated for locked rotor amps up to 150A at 240V, providing the durability needed for high-cycle compressor and fan motor switching. Utilizing binding head screws and side-by-side quick connect terminals, this Eaton C25 series component allows for rapid field replacement and secure electrical termination for professional contractors.
Key Benefits for Technicians:- High Amperage Rating: Handles a 30A FL (Full Load) and 40A Res (Resistive) load, ideal for heavy-duty HVACR motors.
- Reliable Coil Performance: The 120V AC coil is optimized for 110V-120V control circuits, supporting both 50Hz and 60Hz frequencies.
- Compact Footprint: The compact 2-pole design maximizes rail space while maintaining high switching capacity.
- Versatile Terminations: Equipped with both binding head screws and quick-connect terminals to match various wiring styles.
- Class F Insulation: Designed with high-temperature materials to prevent premature coil failure in high-ambient environments.
What is the difference between inductive and resistive ratings on the C25BNB230A?
The inductive rating (30A) refers to motor loads where inrush current is present, such as compressors. The resistive rating (40A) applies to loads like electric heating elements where the current draw is constant.
Can this contactor replace a single-pole unit?
While this is a 2-pole contactor, it can often be used to replace a single-pole unit to provide a physical break for both legs of a 240V circuit, increasing safety, provided the coil voltage matches your control circuit.
How do I mount the C25BNB230A if I don't have a DIN rail?
This model includes a metal mounting plate specifically designed for surface mounting with standard screws, ensuring a secure fit even without a DIN rail system.
