Eaton Cutler-Hammer C0150E5E Transformer

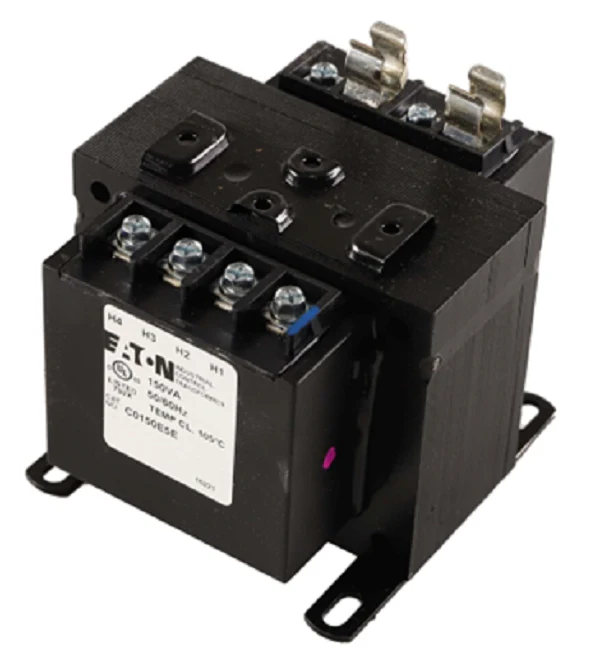

The Eaton Cutler-Hammer C0150E5E is a heavy-duty 150VA control power transformer engineered for demanding industrial and HVACR applications. Designed for multi-tap primary voltages of 208V, 240V, and 480V, this unit steps down to a 120V secondary voltage, making it a reliable solution for powering contactors, relays, and control circuits. The C0150E5E transformer features high-quality silicon steel laminations to minimize core loss and improve efficiency during continuous duty cycles. This Type MTE transformer includes integrated fuse clips for primary and secondary protection, ensuring compliance with NEC requirements for overcurrent protection in motor control loops. The copper-wound coils provide superior conductivity and thermal stability, maintaining voltage regulation even during high inrush current scenarios. For technicians, the clearly marked terminal boards and compact footprint allow for seamless integration into NEMA rated enclosures. Whether servicing control power circuits or retrofitting industrial machinery, this Eaton component ensures stable power delivery and long-term performance in high-temperature environments.
- Universal Voltage Compatibility: Supports 208/240/480V primary inputs for versatile field application.
- Integrated Overcurrent Protection: Factory-installed fuse clips reduce installation time and simplify circuit protection.
- Class 105 insulation: Rated for high-performance operation in elevated ambient temperatures common in industrial control panels.
- High Inrush Capability: Specifically designed to handle the momentary surge current required for energizing electromagnetic solenoids and contactors.
Common Technical Questions
Is the Eaton C0150E5E suitable for 50Hz and 60Hz systems?
Yes, this transformer is dual-rated for 50/60Hz, providing steady power output across varied line frequencies common in global industrial equipment.
How do I select the correct tap for a 480V input?
Refer to the labeled terminal block; standard wiring for 480V utilizes the H1 and H4 terminals. Always verify voltage with a multimeter before energizing the secondary side.
What is the maximum output current for this 150VA transformer?
At a 120V secondary output, the maximum continuous current is 1.25 Amps. Ensure your total load, including inrush, does not exceed the VA rating of the unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Eaton Cutler-Hammer C0150E5E Transformer
The Eaton Cutler-Hammer C0150E5E is a heavy-duty 150VA control power transformer engineered for demanding industrial and HVACR applications. Designed for multi-tap primary voltages of 208V, 240V, and 480V, this unit steps down to a 120V secondary voltage, making it a reliable solution for powering contactors, relays, and control circuits. The C0150E5E transformer features high-quality silicon steel laminations to minimize core loss and improve efficiency during continuous duty cycles. This Type MTE transformer includes integrated fuse clips for primary and secondary protection, ensuring compliance with NEC requirements for overcurrent protection in motor control loops. The copper-wound coils provide superior conductivity and thermal stability, maintaining voltage regulation even during high inrush current scenarios. For technicians, the clearly marked terminal boards and compact footprint allow for seamless integration into NEMA rated enclosures. Whether servicing control power circuits or retrofitting industrial machinery, this Eaton component ensures stable power delivery and long-term performance in high-temperature environments.
- Universal Voltage Compatibility: Supports 208/240/480V primary inputs for versatile field application.
- Integrated Overcurrent Protection: Factory-installed fuse clips reduce installation time and simplify circuit protection.
- Class 105 insulation: Rated for high-performance operation in elevated ambient temperatures common in industrial control panels.
- High Inrush Capability: Specifically designed to handle the momentary surge current required for energizing electromagnetic solenoids and contactors.
Common Technical Questions
Is the Eaton C0150E5E suitable for 50Hz and 60Hz systems?
Yes, this transformer is dual-rated for 50/60Hz, providing steady power output across varied line frequencies common in global industrial equipment.
How do I select the correct tap for a 480V input?
Refer to the labeled terminal block; standard wiring for 480V utilizes the H1 and H4 terminals. Always verify voltage with a multimeter before energizing the secondary side.
What is the maximum output current for this 150VA transformer?
At a 120V secondary output, the maximum continuous current is 1.25 Amps. Ensure your total load, including inrush, does not exceed the VA rating of the unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
