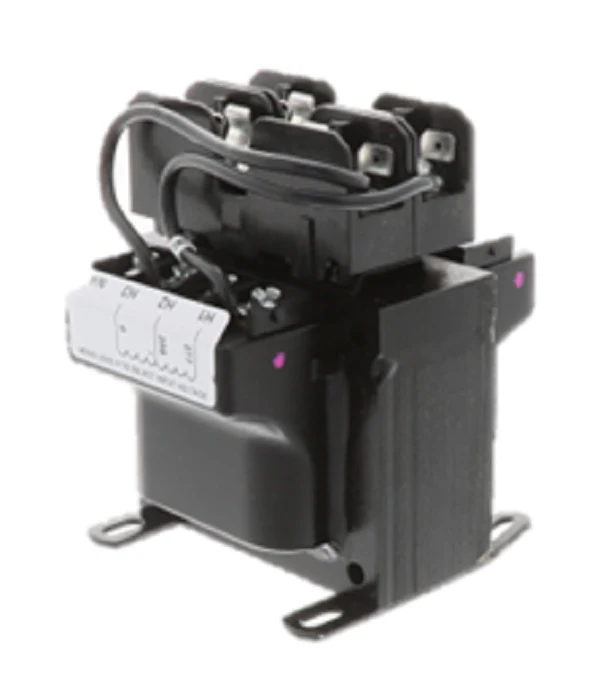

Eaton Cutler-Hammer C0100E3AFB Transformer
The Eaton Cutler-Hammer C0100E3AFB is a high-performance 100VA control power transformer engineered for demanding industrial and commercial HVACR applications. This Type MTE industrial control transformer features multi-tap primary voltage capabilities, supporting 208V and 277V inputs with a consistent 120V secondary output. Built with high-quality silicon steel laminations, it minimizes core losses and improves efficiency during continuous duty cycles. The integrated FB (factory-installed fuse block) design streamlines installation by providing essential overcurrent protection directly on the primary side, a standard requirement for many control circuit configurations. Designed to withstand high inrush currents typical of contactors and relays, the C0100E3AFB ensures stable voltage regulation and long-term reliability in vibration-prone environments. The copper-wound coils and 105°C insulation system make this step-down transformer a reliable component for field replacements or new panel builds where precision 120V control power is critical.
- Versatile Primary Taps: Accommodates 208/277V dual voltage inputs for broad equipment compatibility.
- Enhanced Safety: Includes a factory-mounted primary fuse block to simplify NEC compliance and circuit protection.
- Industrial Build: Features 105°C insulation and epoxy-encapsulated coils to resist moisture and contaminants.
- Compact Footprint: Standard mounting holes ensure a seamless drop-in fit for Eaton MTE series replacements in existing control panels.
Common Technical Questions
What is the maximum current output for the C0100E3AFB?
With a 100VA rating and a 120V secondary, this unit provides approximately 0.83 Amps of continuous current for control circuits.
Can this transformer handle high-inrush solenoids?
Yes, the Eaton C0100E3AFB is specifically designed as a machine tool transformer to maintain secondary voltage stability during brief, high-inrush inductive loads common in HVACR contractors.
Does this unit come with the secondary fuse installed?
The AFB suffix indicates a primary fuse block is included; however, always verify secondary protection requirements based on your specific control circuit load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
