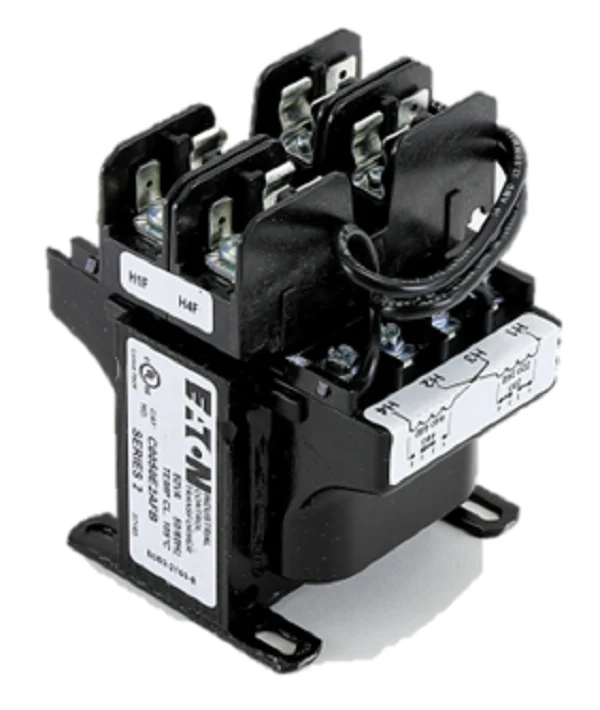

Eaton Cutler-Hammer C0050E2AFB Transformer
The Eaton Cutler-Hammer C0050E2AFB is a professional-grade 50VA industrial control transformer designed for demanding machine tool and HVACR applications. Engineered with copper magnet wire for superior conductivity and thermal efficiency, this Type MTE transformer features an encapsulated core and coil to protect against moisture, dust, and mechanical vibration. High-quality silicon steel laminations are utilized to minimize core losses, ensuring stable voltage regulation for critical control circuits. This unit is triple-rated for versatile field integration, supporting primary inputs of 240V, 480V, 230V, 460V, 220V, and 440V, while stepping down to a consistent 120V/115V/110V secondary output.
For streamlined installation and enhanced safety, the C0050E2AFB comes equipped with a factory-mounted primary fuse block and secondary fuse clips. The molded-in terminals provide rugged termination points that withstand the torque of industrial wiring. Operating at 50/60 Hz with a Class 105 insulation system, this step-down transformer is a reliable solution for isolating control logic from power and lighting circuits, maintaining 0.4A secondary current capacity for relays, contactors, and solenoids.
Key Benefits- Multi-Tap Primary: Supports 240/480V, 230/460V, and 220/440V for maximum job site flexibility.
- Integrated Protection: Includes a factory-installed primary fuse block to save cabinet space and reduce labor.
- Epoxy Encapsulated: Protects the copper windings from harsh HVACR environments and electrical stress.
- Low Core Loss: Silicon steel construction improves performance and reduces heat generation during continuous operation.
- Compact MTE Design: Ideal for tight control panels where space-efficient voltage conversion is required.
What is the maximum secondary amperage for this 50VA model?
At a standard 120V secondary output, the Eaton C0050E2AFB provides a full-load current of approximately 0.4 amps.
Does this unit come with the secondary fuses included?
While the transformer includes secondary fuse clips and a primary fuse block, the individual fuses must be sized and purchased separately based on your specific load requirements.
Can this transformer be used in 50Hz applications?
Yes, the Type MTE series is rated for dual-frequency 50/60 Hz operation, making it suitable for a wide range of industrial equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.29
-65%$175.29
