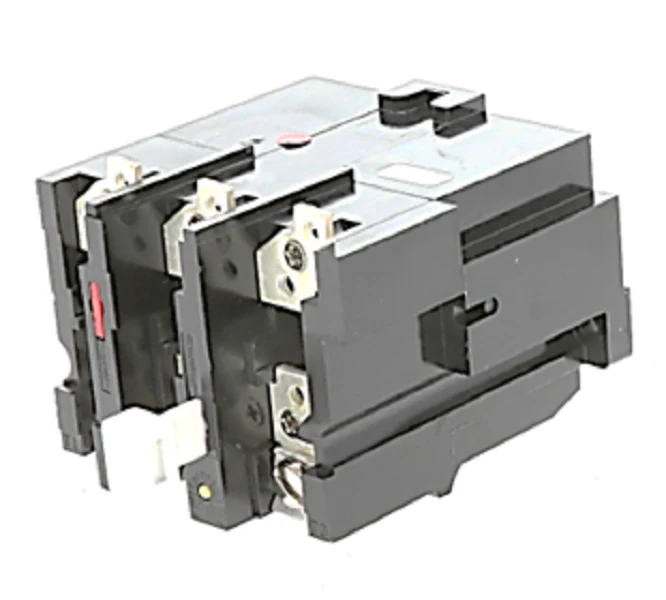

Eaton Cutler-Hammer BA13A Overload Relay
The Eaton Cutler-Hammer BA13A Overload Relay is a mission-critical three-pole bimetallic protection device designed specifically for NEMA A200 motor starters. Featuring an ambient compensated design, this Type B thermal overload relay ensures reliable performance across varying temperature environments, preventing nuisance tripping in high-heat mechanical rooms. With a versatile full-load current range of 0.25 to 26.2 Amps, it provides precise Class 20 trip timing to protect industrial motors from damaging overcurrent conditions. This open type enclosure unit is engineered for direct mounting to the starter, streamlining installation for field contractors. Each BA13A includes a dedicated 1NC auxiliary contact for seamless integration into control circuits. Note that thermal heater elements are required and must be selected based on the specific motor FLA to ensure accurate calibration and system safety. This robust NEMA-rated component is the industry standard for replacing legacy Type B overload relays in legacy motor control centers.
Key Benefits- Ambient Compensation: Maintains consistent trip ratings in fluctuating ambient temperatures, ideal for HVAC and industrial environments.
- Direct Starter Mounting: Simplifies the footprint within the control panel and reduces wiring complexity for NEMA Size 00, 0, and 1 applications.
- High-Visibility Trip Indication: Features an up-front trip indicator to allow technicians to quickly identify faults during troubleshooting.
- Field-Proven Reliability: The bimetallic Type B architecture offers time-tested protection for both single-phase and three-phase motor loads.
Is the BA13A compatible with all A200 series starters?
The BA13A is designed for A200, A210, and A250 controllers. However, for B200 Size 00, 0, and 1 replacements, verify if your specific frame requires the BA23A variant instead.
Does this unit include the heater elements?
No, heaters are sold separately. You must select the appropriate heater pack based on the motor's full-load amperage (FLA) to achieve the desired 0.25-26.2 Amps range.
Can I use this relay for single-phase motor protection?
Yes, the bimetallic design is suitable for both single-phase and three-phase applications, provided it is wired according to the manufacturer's phase-loss sensitive requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
