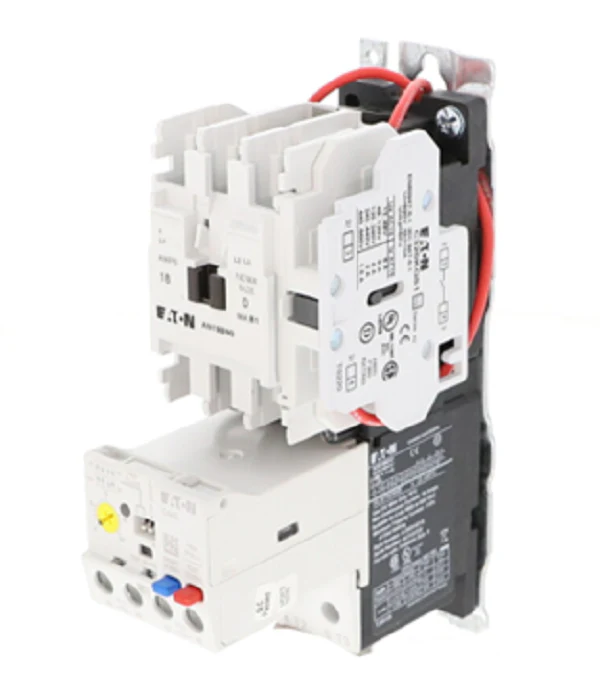

Eaton Cutler-Hammer AN19BN0A5E020 Starter
The Eaton Cutler-Hammer AN19BN0A5E020 is a heavy-duty NEMA size 0 magnetic motor starter designed for reliable full-voltage non-reversing (FVNR) motor control in industrial HVACR systems. This three-pole (3P) starter operates with a 120VAC 60Hz coil voltage and features the Freedom Series design, known for its rugged construction and long-term durability in demanding environments. Engineered for versatility, it accommodates a broad range of C306 bimetallic overload relays to ensure precise motor protection against phase loss and thermal overloads. The AN19 starter is rated for 18 amperes, making it a standard choice for NEMA rated motor control applications where equipment uptime is critical. Contractors value the ease of installation provided by its compact footprint and accessible terminal wiring. This Eaton motor starter provides a dependable solution for starting and protecting three-phase motors in air handling units, pumps, and compressors across commercial facilities.
Key Benefits- NEMA Size 0 Rating: Designed for high-cycle industrial applications, offering superior durability compared to standard IEC contactors.
- Freedom Series Compatibility: Seamlessly integrates with Eaton C306 overload relays for customized motor protection curves.
- 120V Control Circuit: Standard 120VAC 60Hz coil allows for easy integration into most existing HVACR control panels.
- 3-Pole Configuration: Provides reliable switching for three-phase power loads up to 18 amps.
- Field-Replaceable Components: Simplifies maintenance with accessible contacts and coils, reducing total system downtime.
What is the maximum horsepower rating for this NEMA size 0 starter?
At 230V, this Eaton AN19BN0A5E020 is typically rated for up to 3 HP, and up to 5 HP at 460V-575V for three-phase applications.
Does this unit include the overload relay?
The AN19 series usually requires a separate C306 thermal overload relay or C440 electronic overload to be selected based on the specific Full Load Amps (FLA) of your motor.
Can this starter be used for single-phase motor applications?
While designed for three-phase use, it can be wired for single-phase loads by looping the power through the poles to ensure the magnetic starter functions correctly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $548.82
-65%$548.82
$192.09Eaton Cutler-Hammer AN19BN0A5E020 Starter
