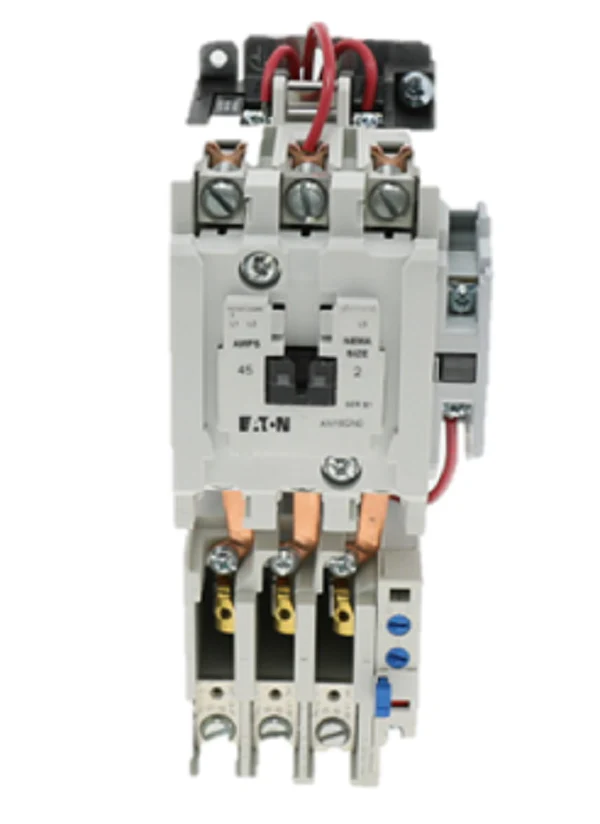

Eaton Cutler-Hammer AN16GN0CB Starter
The Eaton Cutler-Hammer AN16GN0CB Starter is a heavy-duty NEMA Size 2 motor starter engineered for reliable full-voltage, non-reversing control within the proven Freedom Series lineup. Designed for industrial peak performance, this 3-pole unit supports a continuous current rating of 45 Amps and is compatible with both single-phase and three-phase motor applications. The integrated 440/480Vac 50/60Hz coil provides robust magnetic actuation, ensuring consistent switching across high-demand HVACR and industrial circuits. This open-type unit includes an ambient compensated bimetallic overload relay to maintain precise trip accuracy regardless of varying enclosure temperatures. While it features one normally open (1NO) auxiliary contact for status feedback or interlocking, it is important to note that heater packs are not included and must be sized to your specific motor FLA. Built for space-saving panel mounting, the AN16GN0CB meets stringent UL Listed and CSA standards, providing a rugged, long-lasting solution for magnetic motor control in commercial environments.
Key Benefits- Standardized NEMA Size 2 Frame: Guarantees physical and electrical interchangeability with other NEMA-rated equipment in existing motor control centers.
- Enhanced Thermal Protection: The ambient compensated bimetallic overload prevents nuisance tripping caused by high ambient temperatures in electrical rooms.
- Flexible Application: Rated for up to 25 HP at 480V, making it ideal for large blowers, pumps, and compressors.
- Simplistic Maintenance: Top-accessible coil terminals and snap-on auxiliary contacts reduce labor time during installation and field service.
Do I need to purchase heater packs separately for this starter?
Yes. To ensure proper thermal protection, you must select and install C306 heater packs matching your motor's full-load amperage (FLA).
Can this NEMA Size 2 starter be used for single-phase motors?
Yes, the AN16GN0CB is designed for both single and three-phase non-reversing motor applications, though internal wiring may require adjustment for single-phase use.
What is the maximum horsepower rating for this 45-amp unit?
This starter is rated for up to 15 HP at 240V and up to 25 HP at 480V/600V for three-phase systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,113.68
-65%$1,113.68
$389.79Eaton Cutler-Hammer AN16GN0CB Starter
The Eaton Cutler-Hammer AN16GN0CB Starter is a heavy-duty NEMA Size 2 motor starter engineered for reliable full-voltage, non-reversing control within the proven Freedom Series lineup. Designed for industrial peak performance, this 3-pole unit supports a continuous current rating of 45 Amps and is compatible with both single-phase and three-phase motor applications. The integrated 440/480Vac 50/60Hz coil provides robust magnetic actuation, ensuring consistent switching across high-demand HVACR and industrial circuits. This open-type unit includes an ambient compensated bimetallic overload relay to maintain precise trip accuracy regardless of varying enclosure temperatures. While it features one normally open (1NO) auxiliary contact for status feedback or interlocking, it is important to note that heater packs are not included and must be sized to your specific motor FLA. Built for space-saving panel mounting, the AN16GN0CB meets stringent UL Listed and CSA standards, providing a rugged, long-lasting solution for magnetic motor control in commercial environments.
Key Benefits- Standardized NEMA Size 2 Frame: Guarantees physical and electrical interchangeability with other NEMA-rated equipment in existing motor control centers.
- Enhanced Thermal Protection: The ambient compensated bimetallic overload prevents nuisance tripping caused by high ambient temperatures in electrical rooms.
- Flexible Application: Rated for up to 25 HP at 480V, making it ideal for large blowers, pumps, and compressors.
- Simplistic Maintenance: Top-accessible coil terminals and snap-on auxiliary contacts reduce labor time during installation and field service.
Do I need to purchase heater packs separately for this starter?
Yes. To ensure proper thermal protection, you must select and install C306 heater packs matching your motor's full-load amperage (FLA).
Can this NEMA Size 2 starter be used for single-phase motors?
Yes, the AN16GN0CB is designed for both single and three-phase non-reversing motor applications, though internal wiring may require adjustment for single-phase use.
What is the maximum horsepower rating for this 45-amp unit?
This starter is rated for up to 15 HP at 240V and up to 25 HP at 480V/600V for three-phase systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
