Eaton Cutler-Hammer AN16GN0AB Starter

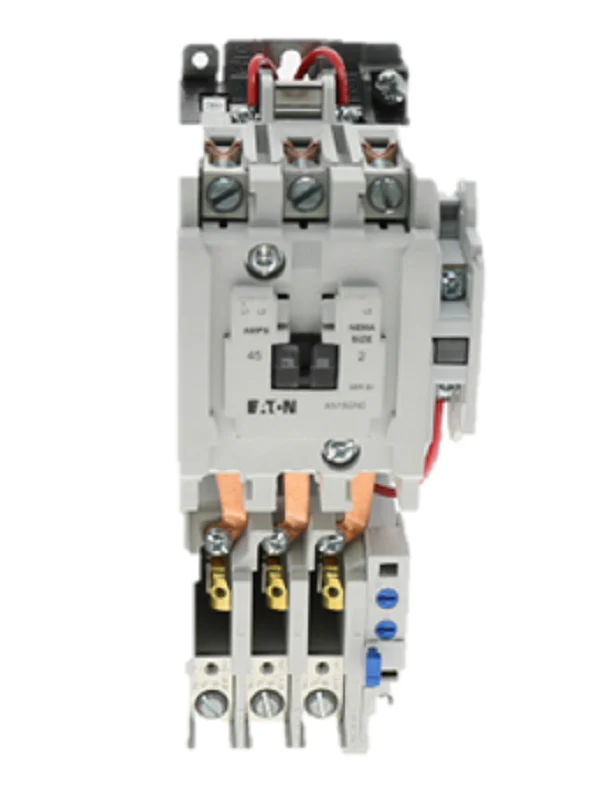

The Eaton Cutler-Hammer AN16GN0AB is a heavy-duty NEMA Size 2 motor starter engineered for reliable full-voltage control of single or three-phase motors. As a core component of the Eaton Freedom Series, this non-reversing starter is rated for 45 continuous amps and supports a maximum of 25 HP at 480/600V. It features a high-performance 110/120V AC coil (50/60Hz) and a 3-pole configuration, making it a standard choice for HVACR contractors managing industrial pump, fan, or compressor loads. The open-type enclosure design allows for seamless integration into existing control panels and motor control centers (MCCs).
For enhanced motor protection, the AN16GN0AB starter includes an ambient compensated bimetallic overload relay that ensures consistent performance across varying temperature environments. This unit comes with one normally open (1NO) auxiliary contact for status signaling or interlocking circuits. Note that heater packs are not included and must be sized specifically to your motor’s full load amps (FLA). Built with silver cadmium oxide contacts, this magnetic motor starter is designed for high electromechanical life and superior resistance to arc erosion in demanding applications.
Key Benefits- Enhanced Durability: Silver cadmium oxide contacts provide excellent conductivity and are resistant to welding, ensuring millions of mechanical operations.
- Technical Versatility: Dual-phase capability allows for application in both single-phase and three-phase motor systems.
- Reliable Overload Protection: The ambient compensated bimetallic relay prevents nuisance tripping caused by fluctuations in cabinet temperature.
- Simplified Wiring: Features accessible terminals and a compact frame for faster installation and maintenance in tight panel spaces.
- Field Upgradable: Compatible with a wide range of Freedom Series accessories, including additional auxiliary contacts and timers.
What heater packs are compatible with the AN16GN0AB?
This starter is compatible with Eaton H2001B through H2017B series heater packs. Always verify the motor's nameplate FLA before selecting your heater pack to ensure proper thermal protection.
Can the coil be replaced if the control voltage changes?
Yes, the Freedom Series design allows for easy coil replacement. While this unit is shipped with a 120V coil, it can be swapped for other standard AC or DC coil voltages available for NEMA Size 2 frames.
Does this starter include a reset button?
The unit features a manual/automatic reset selector on the overload relay, allowing technicians to configure the system based on the specific safety and operational requirements of the equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Eaton Cutler-Hammer AN16GN0AB Starter
The Eaton Cutler-Hammer AN16GN0AB is a heavy-duty NEMA Size 2 motor starter engineered for reliable full-voltage control of single or three-phase motors. As a core component of the Eaton Freedom Series, this non-reversing starter is rated for 45 continuous amps and supports a maximum of 25 HP at 480/600V. It features a high-performance 110/120V AC coil (50/60Hz) and a 3-pole configuration, making it a standard choice for HVACR contractors managing industrial pump, fan, or compressor loads. The open-type enclosure design allows for seamless integration into existing control panels and motor control centers (MCCs).
For enhanced motor protection, the AN16GN0AB starter includes an ambient compensated bimetallic overload relay that ensures consistent performance across varying temperature environments. This unit comes with one normally open (1NO) auxiliary contact for status signaling or interlocking circuits. Note that heater packs are not included and must be sized specifically to your motor’s full load amps (FLA). Built with silver cadmium oxide contacts, this magnetic motor starter is designed for high electromechanical life and superior resistance to arc erosion in demanding applications.
Key Benefits- Enhanced Durability: Silver cadmium oxide contacts provide excellent conductivity and are resistant to welding, ensuring millions of mechanical operations.
- Technical Versatility: Dual-phase capability allows for application in both single-phase and three-phase motor systems.
- Reliable Overload Protection: The ambient compensated bimetallic relay prevents nuisance tripping caused by fluctuations in cabinet temperature.
- Simplified Wiring: Features accessible terminals and a compact frame for faster installation and maintenance in tight panel spaces.
- Field Upgradable: Compatible with a wide range of Freedom Series accessories, including additional auxiliary contacts and timers.
What heater packs are compatible with the AN16GN0AB?
This starter is compatible with Eaton H2001B through H2017B series heater packs. Always verify the motor's nameplate FLA before selecting your heater pack to ensure proper thermal protection.
Can the coil be replaced if the control voltage changes?
Yes, the Freedom Series design allows for easy coil replacement. While this unit is shipped with a 120V coil, it can be swapped for other standard AC or DC coil voltages available for NEMA Size 2 frames.
Does this starter include a reset button?
The unit features a manual/automatic reset selector on the overload relay, allowing technicians to configure the system based on the specific safety and operational requirements of the equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
