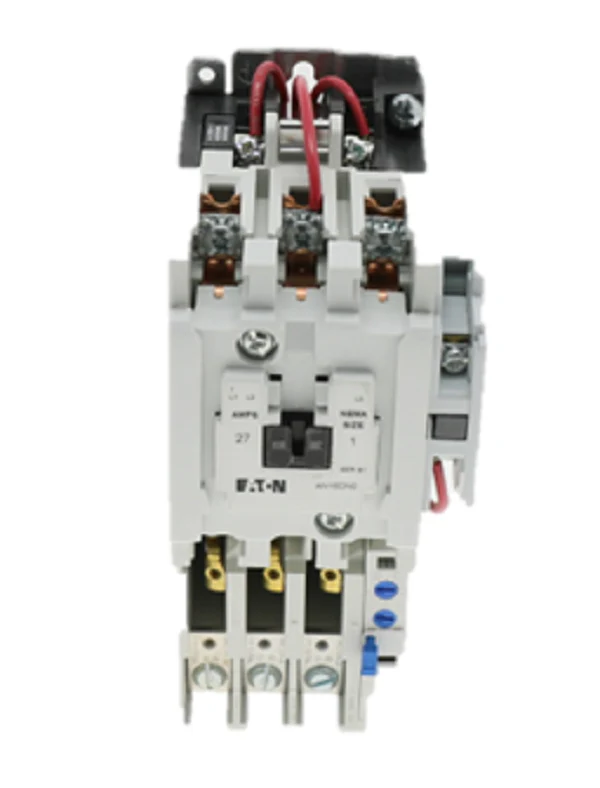

Eaton Cutler-Hammer AN16DN0CB Starter
The Eaton Cutler-Hammer AN16DN0CB Starter is a heavy-duty NEMA Size 1 motor starter from the industry-standard Freedom Series, engineered for reliable across-the-line starting of single or three-phase motors. This non-reversing magnetic starter features a 3-pole configuration with a 27-amp continuous rating, supporting up to 10 HP at 480V. Designed for industrial motor control centers and standalone applications, it includes a 440/480Vac 50/60Hz magnetic coil and a built-in ambient compensated bimetallic overload relay for precise thermal protection. The open type enclosure design is intended for surface mounting within protected panels or custom enclosures. Please note that while it features one normally open auxiliary contact, C306 heater packs must be purchased separately to match your specific motor FLA requirements. This unit is built for demanding HVACR environments, providing high-strength, temperature-resistant insulation and exceptional mechanical life for critical equipment startup.
Key Benefits- Freedom Series Reliability: Proven performance in industrial environments with a compact, space-saving footprint and high-impact insulating materials.
- Thermal Protection: Includes an ambient compensated bimetallic overload relay that ensures consistent motor protection even in varying temperature conditions.
- Versatile Compatibility: Rated for both single phase or three phase motor applications, providing flexibility for diverse job site requirements.
- Simplified Wiring: Features accessible terminals and a top-located magnet coil for efficient installation and maintenance in tight control panels.
Is the overload protection included with the AN16DN0CB?
The starter includes the C306 bimetallic overload relay frame; however, heater packs are not included and must be sized and ordered separately based on the motor's full load amps (FLA).
Can this starter be used for 208V or 240V systems?
While the power contacts are rated up to 600VAC, the 480V coil on this specific model (AN16DN0CB) requires a 440-480VAC control signal to pull in the contacts. If you are using a different control voltage, a transformer or different coil suffix is required.
What is the maximum horsepower rating for this NEMA Size 1 unit?
This starter is rated for up to 7.5 HP at 208/240V and up to 10 HP at 480/600V for three-phase applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
