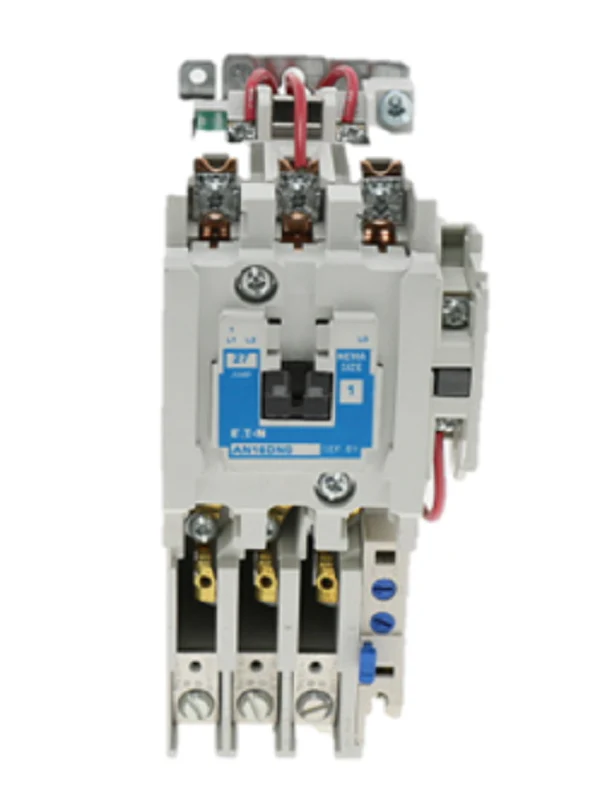

Eaton Cutler-Hammer AN16DN0BB Starter
The Eaton Cutler-Hammer AN16DN0BB starter is a heavy-duty NEMA motor control solution from the proven Freedom Series, engineered specifically for demanding HVACR and industrial motor applications. This NEMA Size 1 magnetic starter features a 3-pole configuration and is rated for a 27A continuous current, making it a reliable choice for managing single or three-phase non-reversing motor loads. The unit is equipped with a 240V/60Hz - 220V/50Hz AC coil and an ambient compensated bimetallic overload relay that ensures consistent performance across varying thermal environments. Designed for horizontal mounting in an open type enclosure, the AN16DN0BB provides 10 HP at 480V and 7.5 HP at 240V. Please note that while the C306 overload relay is included, heater packs are not included and must be sized to your specific motor's full load amps (FLA) to ensure proper protection. Its twin break silver cadmium oxide contacts are built to resist welding and arc erosion, ensuring long-term electrical durability in high-cycle stationary machinery.
Key Benefits- Versatile Application: Supports both single and three-phase non-reversing motor configurations for stationary machinery.
- Precision Protection: The C306 bimetallic thermal overload relay provides reliable protection with automatic or manual reset options.
- Rugged Construction: Features silver cadmium oxide contacts for superior conductivity and resistance to arcing in heavy-duty cycles.
- Ease of Installation: Top-located contactor magnet coils allow for easy accessibility and diagonal wiring without disturbing existing layouts.
- Industrial Standard: Built to NEMA Size 1 specifications, ensuring compatibility with standard industrial motor control systems.
What is the maximum horsepower rating for this starter?
The AN16DN0BB is rated for up to 10 HP at 480/600V, 7.5 HP at 208/240V, and 3 HP at 230V for single-phase applications.
Are the heater packs included with the overload relay?
No, this unit is shipped without heater packs. You must select and install the correct Eaton H2001B through H2017B series heater packs (or equivalent) based on your motor's specific FLA.
Can this starter be used for reversing motor applications?
This specific model is a non-reversing motor starter. For reversing applications, a different Freedom Series configuration featuring mechanical and electrical interlocking would be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
