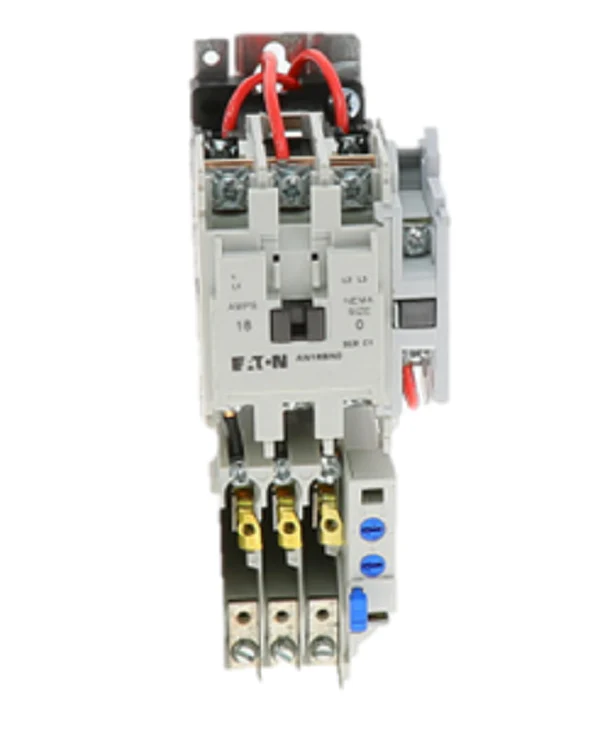

Eaton Cutler-Hammer AN16BN0BC Starter
The Eaton Cutler-Hammer AN16BN0BC Starter is a professional-grade NEMA Size 0 motor starter engineered for reliable across-the-line starting in demanding HVACR and industrial applications. This non-reversing motor starter features a robust 3-pole design and is rated for 18 continuous amps, making it a staple for managing small-to-medium motor loads. It operates with a versatile 220/240Vac 50/60Hz coil and is housed in an open type enclosure, allowing for seamless integration into existing control panels or custom motor control centers. Equipped with an ambient compensated bimetallic overload relay, the AN16BN0BC provides precision thermal protection, ensuring that motor windings are shielded from damaging overcurrent conditions even in varying equipment room temperatures. This unit includes one normally open auxiliary contact for status signaling, providing the necessary feedback loops for complex system automation. Note that interchangeable heater packs must be sized to your specific motor FLA and purchased separately to complete the overload protection circuit.
Key Benefits- Freedom Series Compatibility: Designed to fit the industry-standard Eaton Freedom Series footprint for fast field replacement and motor control upgrades.
- Precision Overload Protection: The bimetallic overload relay compensates for ambient temperature fluctuations to prevent nuisance tripping in hot mechanical rooms.
- Durable Construction: Features silver cadmium oxide contacts for superior conductivity and high resistance to arc erosion during frequent across-the-line starting.
- Application Flexibility: Rated for both single phase and three phase operations, supporting up to 5 HP at 480/600V.
- Easy Automation: Integrated 1NO auxiliary contact allows for easy interlocking with dampers, fans, or BMS monitoring systems.
Do I need to buy heater packs separately for this starter?
Yes. While the starter includes the C306 overload relay, the specific heater packs must be selected based on your motor's Full Load Amps (FLA) to ensure accurate thermal protection.
Can the AN16BN0BC be used for a single-phase motor?
Yes, this 3-pole motor starter is designed for use with both single-phase and three-phase motors, provided the wiring follows the manufacturer’s terminal configuration for single-phase loads.
Will this starter fit into a standard NEMA 1 enclosure?
As an open type starter, it is intended to be mounted inside a separate enclosure. It is compatible with various NEMA-rated cabinets used in industrial motor control applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $514.01
-65%$514.01
$179.90Eaton Cutler-Hammer AN16BN0BC Starter
The Eaton Cutler-Hammer AN16BN0BC Starter is a professional-grade NEMA Size 0 motor starter engineered for reliable across-the-line starting in demanding HVACR and industrial applications. This non-reversing motor starter features a robust 3-pole design and is rated for 18 continuous amps, making it a staple for managing small-to-medium motor loads. It operates with a versatile 220/240Vac 50/60Hz coil and is housed in an open type enclosure, allowing for seamless integration into existing control panels or custom motor control centers. Equipped with an ambient compensated bimetallic overload relay, the AN16BN0BC provides precision thermal protection, ensuring that motor windings are shielded from damaging overcurrent conditions even in varying equipment room temperatures. This unit includes one normally open auxiliary contact for status signaling, providing the necessary feedback loops for complex system automation. Note that interchangeable heater packs must be sized to your specific motor FLA and purchased separately to complete the overload protection circuit.
Key Benefits- Freedom Series Compatibility: Designed to fit the industry-standard Eaton Freedom Series footprint for fast field replacement and motor control upgrades.
- Precision Overload Protection: The bimetallic overload relay compensates for ambient temperature fluctuations to prevent nuisance tripping in hot mechanical rooms.
- Durable Construction: Features silver cadmium oxide contacts for superior conductivity and high resistance to arc erosion during frequent across-the-line starting.
- Application Flexibility: Rated for both single phase and three phase operations, supporting up to 5 HP at 480/600V.
- Easy Automation: Integrated 1NO auxiliary contact allows for easy interlocking with dampers, fans, or BMS monitoring systems.
Do I need to buy heater packs separately for this starter?
Yes. While the starter includes the C306 overload relay, the specific heater packs must be selected based on your motor's Full Load Amps (FLA) to ensure accurate thermal protection.
Can the AN16BN0BC be used for a single-phase motor?
Yes, this 3-pole motor starter is designed for use with both single-phase and three-phase motors, provided the wiring follows the manufacturer’s terminal configuration for single-phase loads.
Will this starter fit into a standard NEMA 1 enclosure?
As an open type starter, it is intended to be mounted inside a separate enclosure. It is compatible with various NEMA-rated cabinets used in industrial motor control applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
