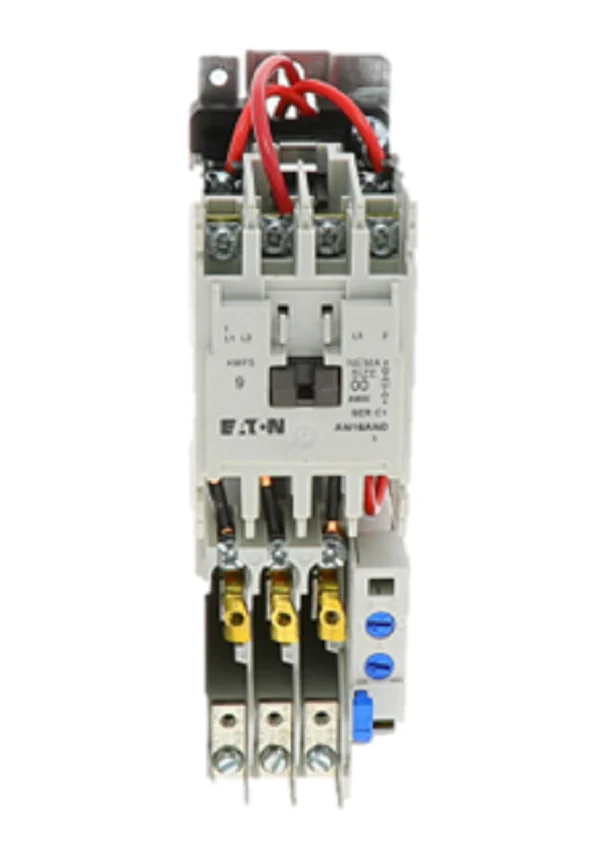

Eaton Cutler-Hammer AN16AN0BC Starter
The Eaton Cutler-Hammer AN16AN0BC Starter is a heavy-duty NEMA Size 00 motor starter engineered for reliable operation in intense HVACR and industrial motor control applications. This Freedom Series starter features a 3-pole configuration and is rated for 9 continuous amps, supporting both single-phase and three-phase non-reversing motor loads. It is equipped with a versatile 220/240Vac 50/60Hz coil, ensuring seamless integration into standard 230V or 240V control circuits. The open type enclosure is designed for panel mounting within specialized control cabinets, providing easy access to finger-proof terminals and top-located coil connections for simplified field wiring.
Built for thermal protection, the AN16AN0BC includes an ambient compensated bimetallic overload relay that ensures consistent performance across varying temperature environments. For expanded logic and signaling, the unit comes standard with one normally open (NO) auxiliary contact. This magnetic motor starter is compatible with C306 heater packs (sold separately), allowing technicians to fine-tune the trip settings to the specific full load amps of the motor. The high-strength, impact-resistant insulating materials ensure long-term durability in demanding contractor-grade environments.
Key Benefits
- Compact NEMA Size 00 design saves critical rail space in crowded control panels.
- Dual-frequency 220/240V coil provides flexibility for various power supply requirements.
- Ambient compensated overload relay prevents nuisance tripping caused by high cabinet temperatures.
- Interchangeable heater packs allow for precise field-adjustable motor protection.
- Freedom Series compatibility facilitates easy replacement and integration with universal snap-on accessories.
Common Questions
What is the maximum horsepower rating for this NEMA 00 starter?
This starter is rated for 1-1/2 HP at 240V and 2 HP at 480/600V for three-phase applications.
Does this unit include the heater packs required for the overload relay?
No, C306 heater packs must be purchased separately to match the specific FLA of your motor.
Can the overload relay be set to automatic reset?
Yes, the bimetallic overload relay features a selectable manual or automatic reset operation to suit the application requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
