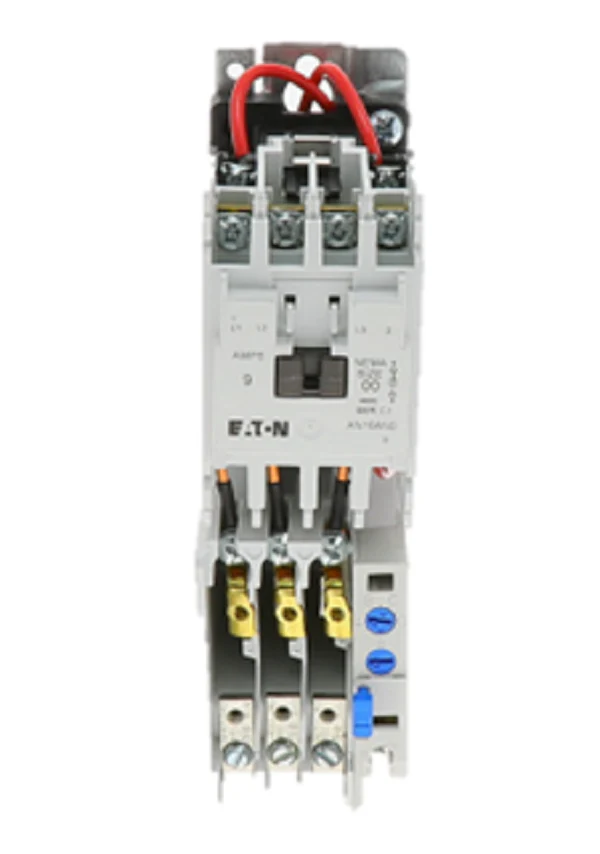

Eaton Cutler-Hammer AN16AN0AC Starter
The Eaton Cutler-Hammer AN16AN0AC Starter is a professional-grade NEMA Size 00 motor starter from the trusted Freedom Series lineup. Engineered for reliable full-voltage, non-reversing motor control, this 3-pole magnetic starter is rated for 9 continuous amps and supports 600VAC maximum operating voltage. It features a high-performance 110/120V 50/60Hz coil, making it a standard choice for contractors looking for a robust solution in industrial motor control applications. This open type enclosure unit includes an ambient compensated bimetallic overload relay with a 1NO-1NC contact configuration for precise thermal protection and a factory-installed normally open auxiliary contact. Designed for long-term service life, the AN16AN0AC provides consistent across-the-line starting for both single and three-phase motors in demanding HVACR and industrial environments. Please note that heater packs are not included and must be sized according to your motor’s full load amps (FLA) for proper protection.
- Freedom Series Compatibility: Seamlessly integrates with Eaton C306 bimetallic overload relays and a wide range of field-mountable accessories.
- Versatile Phase Support: Suited for both single-phase and three-phase motor applications up to 2 HP at 480/600V.
- Reliable Coil Performance: The dual-frequency 110/120VAC coil ensures stable operation across standard 50Hz and 60Hz control circuits.
- Contractor-Friendly Installation: Features a horizontal mounting design and compact footprint for easy integration into control panels.
- Durable Construction: Built with silver cadmium oxide contacts to provide superior conductivity and resistance to arc erosion.
Common Questions
What is the maximum horsepower rating for this NEMA Size 00 starter?
The Eaton AN16AN0AC is rated for 1/3 HP at 115V, 1.5 HP at 230V (3-phase), and up to 2 HP at 480V or 600V (3-phase).
Does this unit include the necessary heater packs for overload protection?
No, heater packs for AN16AN0AC are sold separately. You must select the specific heater pack based on your motor's nameplate FLA to ensure the bimetallic overload relay functions correctly.
Can I add more auxiliary contacts to this Freedom Series starter?
Yes, the Cutler-Hammer Freedom Series design allows for additional side-mount or top-mount auxiliary contact blocks to expand your control logic as needed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $416.30
-65%$416.30
$145.70Eaton Cutler-Hammer AN16AN0AC Starter
