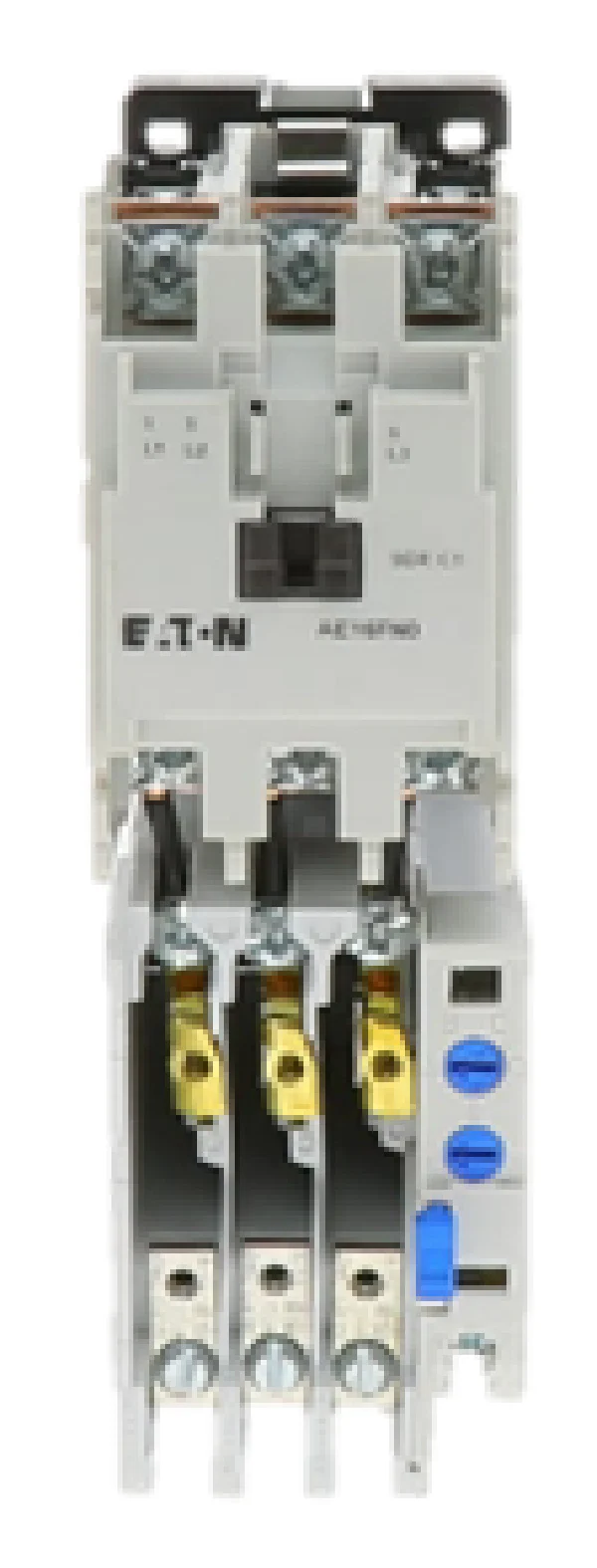

Eaton Cutler-Hammer AE16FN0AC Starter
The Eaton Cutler-Hammer AE16FN0AC Starter is a heavy-duty IEC non-reversing motor starter designed for reliable control of three-phase AC motor loads. Engineering for the Freedom Series, this Size F starter features a compact 45mm frame, making it an ideal choice for high-density control panels in HVACR and industrial automation. It utilizes a 120V AC coil (50/60 Hz) and is rated for a 32A thermal current, supporting up to 20 HP at 460V and 25 HP at 600V. The unit comes equipped with a C306 bimetallic overload relay for circuit protection, though specific heater packs must be selected based on your motor's full-load amps (FLA). The magnetic contactor is built with silver cadmium oxide contacts for superior arc erosion resistance, providing a mechanical life of up to 20 million operations. This 3-pole, open-style starter ensures seamless integration into existing motor control centers requiring precise IEC-rated performance.
Key Benefits- Features high-strength, temperature-resistant insulating materials for long-term service in demanding mechanical environments.
- Includes a standard 1NO auxiliary contact for easy integration into signaling and holding circuits.
- Horizontal or vertical mounting options provide significant flexibility for contractors during field retrofits.
- Designed with straight-through wiring and accessible terminals to reduce installation time and complexity.
- Compatible with a wide range of snap-on accessories, including timers and additional auxiliary contact blocks.
What is the maximum horsepower rating for this Size F starter?
The AE16FN0AC is rated for a maximum of 20 HP at 460V and 25 HP at 600V for 3-phase applications.
Does this unit include the heater packs for the overload relay?
No, heater packs for the C306 bimetal overload relay are sold separately to match the specific FLA of your motor.
Can this starter be used for single-phase motor control?
Yes, it is rated for 2 HP at 115V and 5 HP at 230V in single-phase applications, though it is primarily optimized for 3-phase systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
