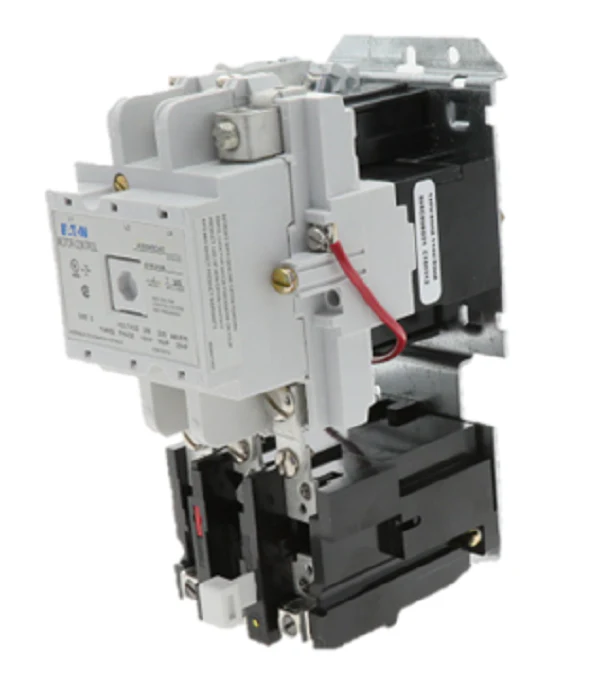

Eaton Cutler-Hammer A200M2CAC Starter
The Eaton Cutler-Hammer A200M2CAC is a heavy-duty, 3-pole magnetic motor starter engineered for reliable across-the-line starting of squirrel cage induction motors. As a NEMA Size 2 starter, this unit is rated for a 45A continuous current and functions within a 110/120V 50/60Hz coil voltage range, making it a staple for industrial HVACR and motor control panels. This non-reversing starter features an open-type enclosure design, providing straight-through wiring with up-front terminals to simplify field integration. It comes equipped with a Type B bimetallic thermal overload relay that offers ambient compensation and a manual reset, though heaters must be sized and purchased separately. Built for durability in demanding environments, the A200M2CAC supports a wide variety of motor loads, delivering up to 10 hp at 208V and 25 hp at 480/600V. Its front-accessible contacts allow for rapid inspection and maintenance, ensuring minimal downtime for critical system operations.
Key Benefits- Enhanced Motor Protection: Includes an ambient-compensated bimetallic thermal overload relay to prevent nuisance tripping in varying temperature environments.
- Robust Current Handling: Designed for an ampere rating of 45A, providing consistent performance for single or three-phase industrial motor applications.
- Efficient Installation: Features straight-through wiring and a compact footprint that reduces necessary panel space.
- Easy Maintenance: Moving and stationary contacts are fully accessible from the front for quick status checks and service.
- Flexible Control: The 120VAC coil is wired for separate control, allowing for seamless integration into common pilot device circuits.
What is the maximum horsepower rating for this Size 2 starter?
The units are rated for 15 hp at 240V and up to 25 hp at 480V/600V for three-phase applications.
Does this unit include the specific overload heaters?
No, heaters are not included. They must be selected and installed separately based on the specific Full Load Amps (FLA) of your motor.
Can this starter be used for reversing applications?
This specific model is a non-reversing NEMA starter. For reversing requirements, you would typically look at the A210 series or use a mechanical interlock kit with two contactors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
