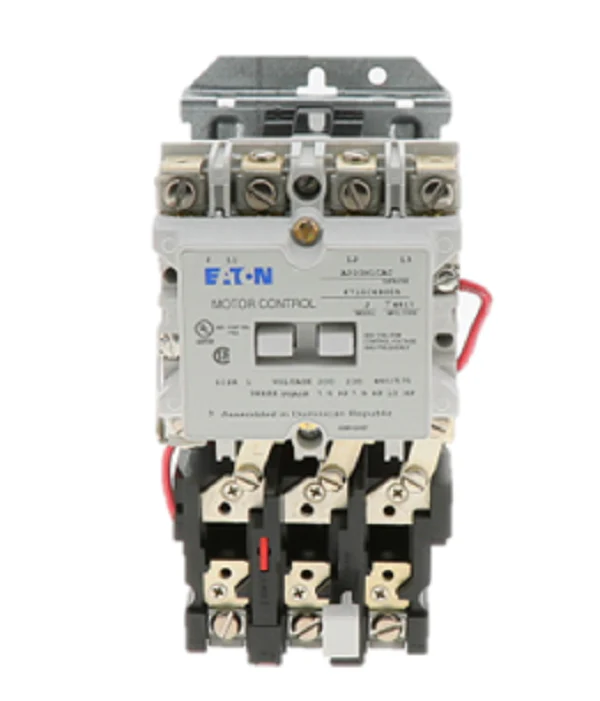

Eaton Cutler-Hammer A200M1CAC Starter
The Eaton Cutler-Hammer A200M1CAC Starter is a heavy-duty NEMA Size 1 magnetic motor starter engineered for reliable across-the-line starting and stopping of squirrel cage motors. This non-reversing starter features a 3-pole configuration and is rated for 27 Amps, providing exceptional performance in demanding industrial HVACR and motor control applications. It operates on a 110/120Vac 50/60Hz coil voltage and is housed in an open-type enclosure, making it ideal for integration into custom control panels where space-efficient straight-through wiring is required.
For motor protection, this unit is equipped with a type B ambient compensated bimetallic overload relay. This manual reset relay ensures consistent tripping characteristics across varying temperature environments, though heaters must be purchased separately based on specific motor full-load amps (FLA). The A200 series is a standard for contractors due to its rugged silver-cadmium oxide contacts and the ability to add up to four auxiliary contacts. Whether managing 1-phase or 3-phase loads, the A200M1CAC delivers the durability needed for high-cycle motor control.
Key Benefits:- NEMA Size 1 Rating: Robust construction capable of handling up to 10 HP at 480/600V.
- Ambient Compensation: The bimetallic overload relay maintains accurate protection regardless of surrounding mechanical room temperatures.
- Installation Efficiency: Features up-front terminals and screw connections to streamline field wiring for electrical contractors.
- Separate Control Wiring: Pre-wired for separate control circuits, allowing for flexible integration with external pilot devices.
- Standardized Replacement: The Eaton A200 series footprint is a direct industry standard, simplifying the swap-out of older Westinghouse or Cutler-Hammer units.
What is the maximum horsepower rating for this starter?
The A200M1CAC is rated for 2 HP at 115V (single phase), 7.5 HP at 230V, and 10 HP at 480V or 600V (three phase).
Are the thermal heaters included with this unit?
No, this NEMA Size 1 starter requires the selection and installation of Type B heaters based on your specific motor nameplate data.
Can this starter be used for 1-phase applications?
Yes, this 3-pole magnetic starter is compatible with both single-phase and three-phase motor configurations when wired according to the manufacturer's diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
