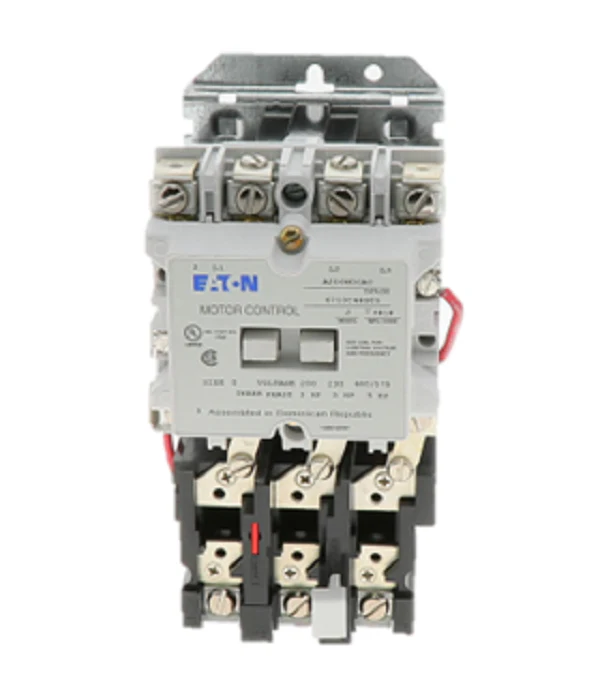

Eaton Cutler-Hammer A200M0CAC Starter
The Eaton Cutler-Hammer A200M0CAC Starter is a heavy-duty NEMA Size 0 non-reversing magnetic motor starter designed for reliable across-the-line starting and stopping of single-phase or three-phase AC motors. Engineered for industrial motor control, this unit features a 3-pole configuration rated for a continuous current of 18 Amps and a maximum system voltage of 600VAC. The integrated 110/120V AC 50/60Hz coil ensures compatibility with standard control circuits, providing consistent contact engagement under demanding cycles.
For motor protection, the A200M0CAC is equipped with a Type B bimetallic thermal overload relay. This relay provides ambient compensation, maintaining accurate trip settings even in varying mechanical room temperatures, and includes a manual reset deficiency-trip mechanism. Note that overload heaters are not included and must be sized according to your motor's Full Load Amps (FLA). This open-type enclosure model is intended for mounting within a larger control panel or MCC, offering straight-through wiring and front-removable parts to simplify field maintenance for HVACR contractors and electricians.
Key Benefits- Precision Motor Protection: The ambient-compensated Type B overload relay prevents nuisance tripping by adjusting to surrounding thermal conditions.
- Versatile Phase Mapping: Suitable for both single-phase and three-phase motor applications up to 5 HP at 480/600V.
- Industrial-Grade Contacts: Designed for high-cycle longevity with silver alloy contacts that resist welding and pitting.
- Space-Efficient Design: The NEMA Size 0 footprint and open style allow for easy integration into existing NEMA-rated enclosures.
- Reliable Control: The 120V coil voltage is ideal for standard 60Hz control transformers commonly found in commercial HVAC systems.
What is the maximum horsepower rating for this starter?
The A200M0CAC is rated for 1 HP at 115V (1-phase), 3 HP at 230V (3-phase), and up to 5 HP at 480V and 600V (3-phase).
Are the thermal heaters included with this unit?
No, thermal heaters are sold separately. You must select the specific heater pack based on the motor's nameplate FLA and the required service factor protection.
Can I add auxiliary contacts to this starter?
Yes, the A200 series features accessory mounting cavities that allow for the field installation of additional Type J auxiliary contacts for signaling or interlocking.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
