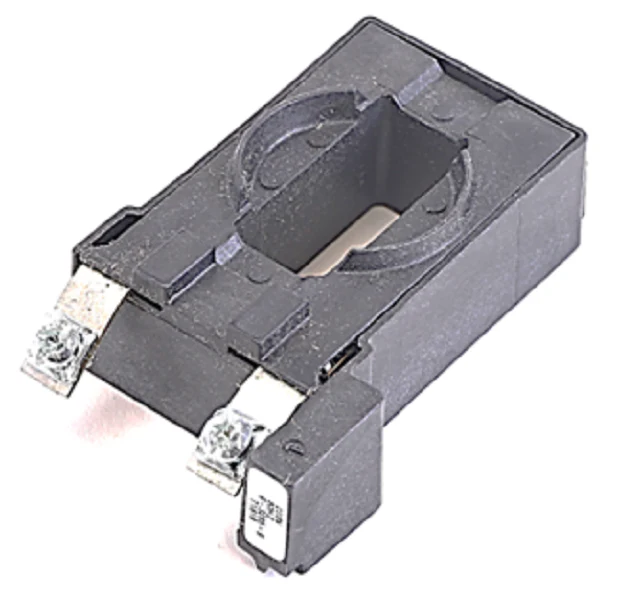

Eaton Cutler-Hammer 9-3285-9 Coil
The Eaton Cutler-Hammer 9-3285-9 Coil is a precision-engineered AC magnetic coil designed for integration with Freedom Series motor control components. Operating at 208Vac 60Hz, this replacement coil is essential for maintaining the electromagnetic integrity of NEMA Size 1 and NEMA Size 2 contactors and starters. It is specifically compatible with the CN35B1 Series and industrial-grade units such as the AN16, AN30, and CN15. Designed with a Type E suffix, this 65mm coil ensures reliable armature pull-in and holding force, preventing the chattering and contact bounce often associated with aging or mismatched control components. For HVACR contractors handling motor control renewal, the 9-3285-9 provides an exact OEM fit for IEC Frame Sizes G through K (Series B1 and C1). Utilizing this Eaton magnetic coil ensures your motor starters maintain consistent duty cycles in demanding commercial environments where voltage stability is critical for preventing coil burnout.
Key Benefits- Universal Compatibility: Engineered for seamless fitment in NEMA Size 1 and 2 Freedom Series contactors and starters.
- Optimized 208V Operation: Designed specifically for 208Vac 60Hz control circuits to ensure efficient flux generation.
- Industrial Durability: Robust magnetic coil construction resists thermal cycling and vibration in heavy-duty HVACR applications.
- Easy Installation: Standard 65mm architecture allows for rapid field replacement, reducing system downtime.
- OEM Standards: Meets strict Eaton Cutler-Hammer specifications for precise physical dimensions and electrical performance.
Is the 9-3285-9 compatible with both Series A1 and B1 starters?
Yes, this coil is designed for use with NEMA Size 1-2 (Series A1 and B1) as well as IEC Frame Sizes G-K (Series B1 and C1).
Can I use this 208V coil on a 240V control circuit?
No, using a 208Vac rated coil on a 240V circuit can lead to overheating and premature failure. Always verify your control transformer output before installation.
Does this coil include the magnet frame or armature?
This part number refers to the replacement magnetic coil only. The existing magnet frame and armature should be inspected for wear before installing the new coil.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
