Eaton Cutler-Hammer 9-3285-1 Coil

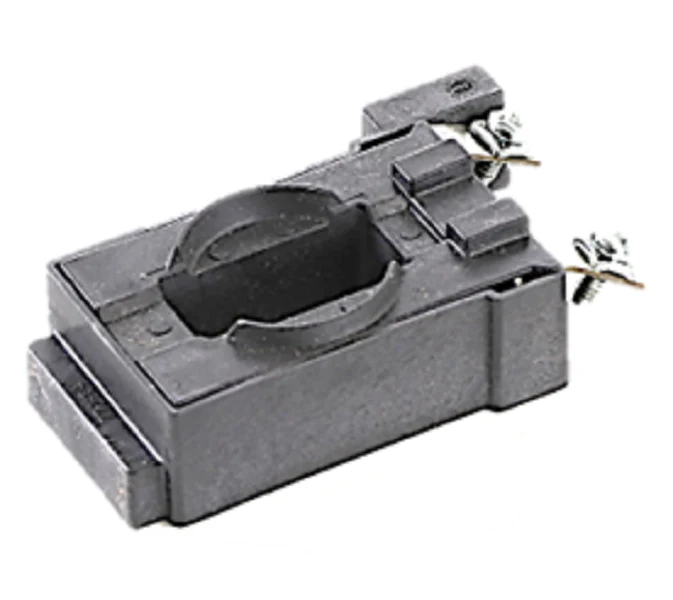

The Eaton Cutler-Hammer 9-3285-1 Coil is a precision-engineered 120V replacement magnetic coil specifically designed for the Freedom Series motor control line. Operating at 110/120Vac 50/60Hz, this component provides the inductive force required to actuate NEMA Size 1 and NEMA Size 2 Contactors and Starters. As a critical renewal part, the 9-3285-1 is the direct replacement for standard 120-volt control circuits, ensuring the reliable mechanical operation of magnetic motor starters and power contactors in industrial environments.
For field technicians, compatibility is key. This Freedom Series coil fits a wide range of Eaton and Cutler-Hammer hardware, including AN16, AN19, and CN15 models. When replacing a burned-out or humming coil, verifying the frame size (65 mm) and voltage rating is essential to prevent premature failure. The 9-3285-1 utilizes high-grade copper windings and durable insulation to maintain electromagnetic integrity under continuous duty cycles, making it the standard choice for maintaining heavy-duty industrial contactors.
Key Benefits
- Broad Compatibility: Engineered for seamless integration with Eaton Freedom Series NEMA Size 1 and NEMA Size 2 starters and contactors.
- Dual Frequency Operation: Supports both 50Hz and 60Hz power systems, accommodating 110V to 120V control circuit requirements.
- Simplified Maintenance: Direct-fit design replaces Cutler-Hammer 9-3285-1 parts quickly to minimize equipment downtime.
- Industrial Durability: Built to withstand the thermal demands of high-cycle motor control applications in HVACR and manufacturing systems.
Common Questions
Can I use a 9-3285-1 coil to replace an older Citation Series coil?
The 9-3285-1 is specifically designed for the Freedom Series. While some physical dimensions may overlap, you should verify the mounting footprint and "Series A1" or "B1" designations on your existing starter to ensure a match.
Will this coil work for both NEMA Size 1 and Size 2 units?
Yes, this specific 120V magnetic coil is the standard replacement for both NEMA Size 1 and NEMA Size 2 Freedom Series frames, which share common magnet structures.
Why is my new coil humming after installation?
Humming often indicates debris on the magnet faces or a slightly misaligned armature. Ensure the pole pieces are clean and the contactor assembly is seated correctly before energizing the circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
