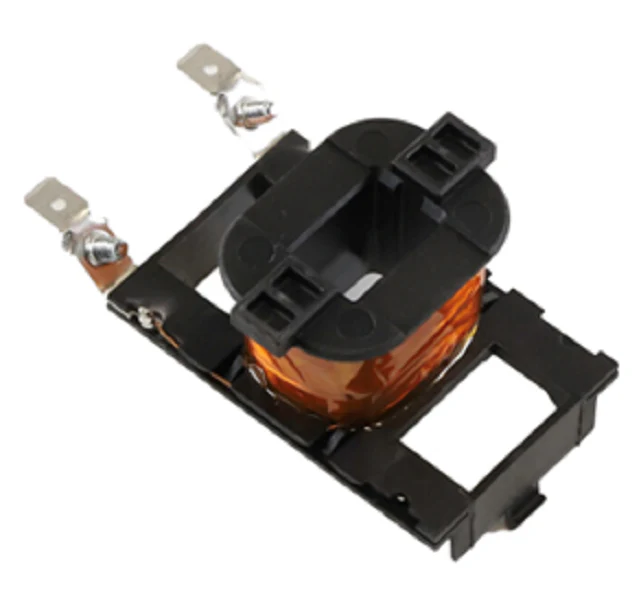

Eaton Cutler-Hammer 9-3185-6 Replacement Coil
The Eaton Cutler-Hammer 9-3185-6 Replacement Coil is a professional-grade 24V AC motor control coil engineered for C25 Series Definite Purpose Contactors. Designed to fit 15A to 40A contactors in both 2-pole and 3-pole configurations, this Type T, 50 mm replacement coil provides high-performance switching for critical HVACR and industrial motor control applications. Operating at 24 VAC (50/60 Hz), it features Class F insulation, ensuring maximum thermal stability and reliability in demanding environments with high-duty cycles. As a direct-fit component for Series D1 and E1 frames, it eliminates the need for field modifications, allowing for rapid restoration of contactor functionality. Replace your failing magnetic contactor coil with this genuine Eaton electrical renewal part to maintain proper armature pull-in and prevent chattering or contact welding caused by insufficient voltage or coil degradation.
- Universal Compatibility: Fits the full range of Eaton/Cutler-Hammer C25D contactors from 15 to 40 Amps.
- Industrial Durability: Robust Class F insulation rating for superior heat resistance during continuous operation.
- Precision Fit: Standard 50 mm frame size ensures a seamless swap into existing 2-pole and 3-pole assemblies.
- Optimized Performance: Specifically tuned for 24V control circuits, preventing common issues like hum or failure to latch.
Common Questions
Will this work with other contactor brands?
This coil is specifically designed for Eaton and Cutler-Hammer C25 definite purpose series contactors. To ensure proper fit and safety, do not attempt to use it in contactors from other manufacturers without verifying the 50 mm frame size and mounting specifications.
How do I identify if my coil needs replacement?
Common signs include a loud humming sound, the contactor refusing to pull in when 24V is applied, or visible scorching on the coil’s epoxy surface. Always verify that your control circuit is delivering a full 24 VAC before replacing the component.
Can I use this for both 50Hz and 60Hz systems?
Yes, this replacement coil is rated for dual-frequency operation at 50/60 Hz, making it suitable for a wide range of regional power standards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
