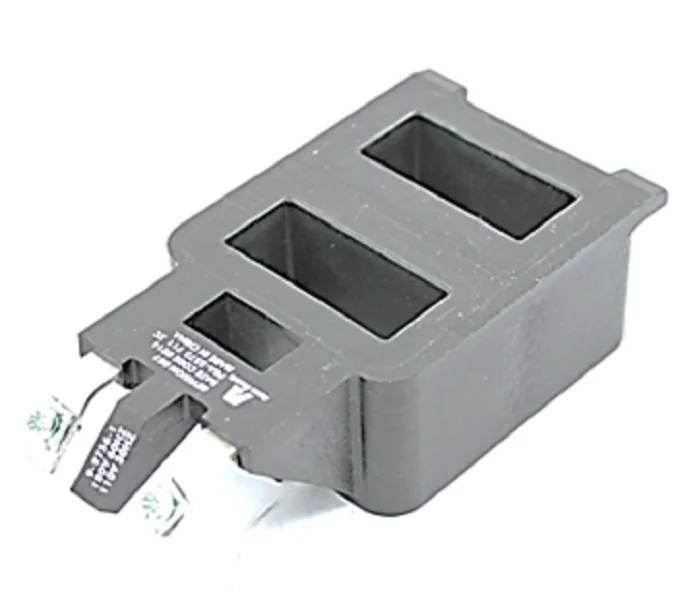

Eaton Cutler-Hammer 9-2756-1 Coil
The Eaton Cutler-Hammer 9-2756-1 Magnetic Coil is the direct OEM replacement coil designed for NEMA Size 3 and 120 Amp 3-pole definite purpose contactors. Engineered for industrial-grade reliability, this 110/120V AC control coil operates effectively at 50/60Hz, ensuring stable electromagnetic actuation for Freedom Series starters and CN15, CN35, and CN55 contactors. Utilizing high-strength, temperature-resistant insulating materials, this replacement magnetic coil maintains a Class B (130°C) rating, providing high performance in demanding HVACR and motor control environments. Whether you are performing routine maintenance or a critical system repair, this 90mm coil ensures precise pull-in and dropout across IEC Frame Sizes L through N, mitigating the risk of contact chatter or coil burnout in high-amperage applications.
Key Benefits- Direct OEM Compatibility: Specifically engineered for Eaton Freedom Series and Cutler-Hammer NEMA Size 3 motor starters and contactors.
- Dual Frequency Versatility: Seamless operation on 110V/50Hz or 120V/60Hz control circuits without sacrificing performance.
- Thermal Resilience: Constructed with Class B insulation to withstand continuous duty in high-temperature electrical enclosures.
- Optimized Power Draw: Features a 390 VA maximum inrush and 49.8 VA maximum sealed rating for efficient energy management.
- Standardized Housing: Compact 90mm footprint allows for straightforward field installation into existing 120A DP contactor frames.
What contactor series is the 9-2756-1 coil compatible with?
This coil is primarily used with Eaton Cutler-Hammer Freedom Series and C25 Series Definite Purpose Contactors, specifically 3-pole units rated at 120 Amps or NEMA Size 3.
Can I use this 120V coil on a 110V control circuit?
Yes, it is rated for 110/120VAC. It handles 110V at 50Hz and 120V at 60Hz, making it ideal for standard North American industrial control voltages.
Does this coil fit IEC-rated equipment?
Yes, it is suitable for use with IEC Frame Sizes L, M, and N, providing a versatile solution for cross-platform electrical repairs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
