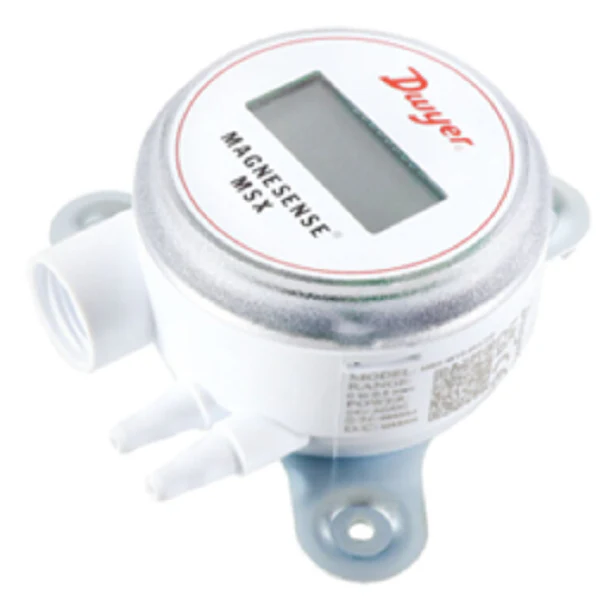

Dwyer Instruments MSX-W10-IN-LCD Transmitter
The Dwyer Instruments MSX-W10-IN-LCD is a wall-mount Magneseries differential pressure transmitter designed for high-accuracy monitoring in HVAC systems and building automation. Engineered for precision, this MSX series pressure sensor utilizes a robust MEMS sensing element to deliver stable measurements of air and compatible, non-combustible gases. This specific model features a clear built-in LCD display for real-time local monitoring and is pre-configured for a 4-20mA output signal, ensuring seamless integration with standard PLC and BAS controllers. The bidirectional pressure monitoring capability allows for versatile installation in complex ductwork or cleanroom environments. With its field-selectable ranges and tool-less terminal block, this digital differential pressure gauge simplifies commissioning for contractors managing static pressure measurement and filter status monitoring. The IP66-rated enclosure provides industrial-grade protection against moisture and debris, making it a reliable choice for critical airflow applications.
Key Technical Benefits
- Field-Upgradable Flexibility: Selectable pressure ranges and output types (current or voltage) reduce inventory requirements and allow for on-site adjustments.
- High Accuracy Sensing: Maintains strict tolerances for HVAC pressure sensors, minimizing drift and ensuring long-term stability in commercial air handling units.
- Streamlined Installation: The removable terminal block and wall-mount design facilitate efficient wiring and HVAC system integration.
- Local Diagnostics: The integrated LCD display provides immediate visual verification of system pressure, assisting in rapid troubleshooting.
Common Technical Questions
How do I change the pressure range on the MSX-W10-IN-LCD?
This transmitter features internal DIP switches that allow you to toggle between four different pressure ranges and select between unidirectional or bidirectional operation without needing a separate calibrator.
Can this unit be used for liquid pressure sensing?
No, the MSX series is specifically designed for use with air and non-combustible, non-corrosive gases. For hydraulic or liquid applications, a wet-to-wet differential pressure transducer is required.
What power supply is required for the 4-20mA loop?
As a 2-wire transmitter, it typically operates on a 10-35 VDC power supply. Always ensure the loop resistance is calculated to maintain sufficient voltage at the sensor terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
