Dwyer Instruments MARK II-25 Manometer

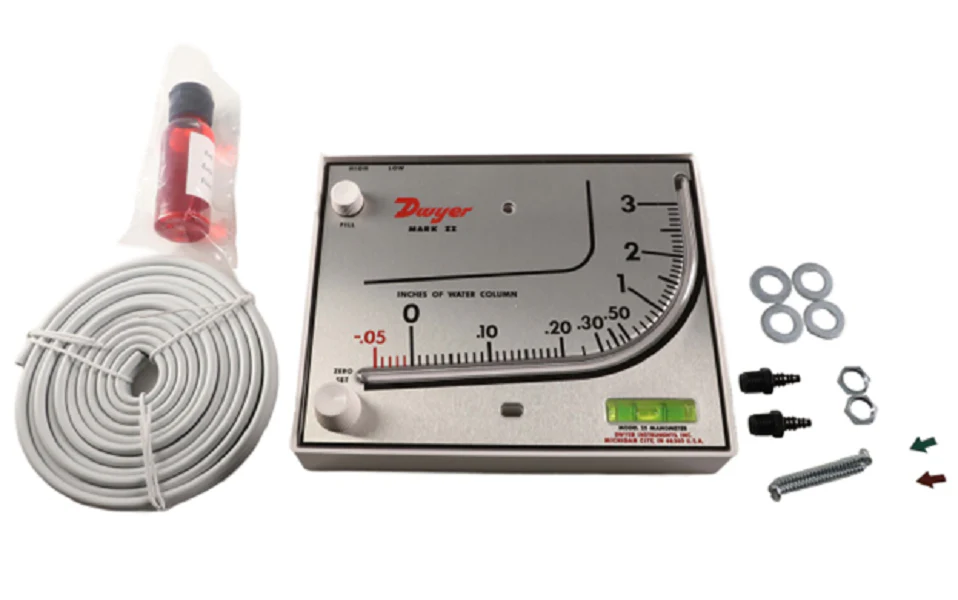

The Dwyer Instruments MARK II-25 Manometer is a reliable, professional-grade inclined-vertical manometer designed for high-accuracy pressure monitoring in HVACR systems. Built with a virtually indestructible white styrene-acrylonitrile housing, this 0 to 3" W.C. range instrument utilizes a curved tube design to provide expanded scales with easy-to-read increments at low pressure levels. As a veteran technician knows, the precise ± 3% full-scale accuracy is critical when measuring differential pressure across filter banks or monitoring furnace draft. The unit is optimized for red gage fluid (0.826 s.g.) and features a 10 PSI pressure limit, making it suitable for stationary mounting or portable use with an optional stand. Its leak-proof O-ring seals and molded ABS zero-adjust knob ensure the static pressure readings remain consistent during system balancing or troubleshooting. This molded plastic manometer is a staple for contractors maintaining residential and light commercial air handling units where dependable performance is non-negotiable.
Key Benefits- Enhanced Low-End Resolution: Curved inclined-vertical tube geometry provides superior readability for critical low-pressure air measurements.
- Rugged Construction: Durable styrene-acrylonitrile body and shock-mounted glass level vial withstand rigorous job site conditions.
- Versatile Application: Ideal for monitoring air filter pressure drop, duct velocities, and furnace draft pressures.
- Precise Zeroing: Integrated zero adjust knob and plunger allow for rapid, accurate calibration in the field.
- Comprehensive Kit: Includes 8 feet of double column tubing, mounting hardware, and red/green pointer flags for visual range marking.
How do I properly zero the MARK II-25?
Disconnect all tubing and turn the zero set knob counter-clockwise until it stops, then clockwise three full turns to center the adjustment. Add red gage fluid until it reaches the zero mark, then fine-tune with the knob while ensuring the unit is perfectly level using the built-in vial.
Can this manometer be used for air velocity?
Yes, when paired with a pitot tube, the MARK II-25 can measure air velocity. Ensure the tubing from the total pressure side of the pitot tube connects to the high-pressure port (left) and the static pressure side connects to the low-pressure port (right).
What is the maximum operating temperature?
This plastic manometer has a temperature limit of 140°F (60°C). Exposure to temperatures exceeding this limit can deform the molded housing or impact the specific gravity and reliability of the internal fluid.
