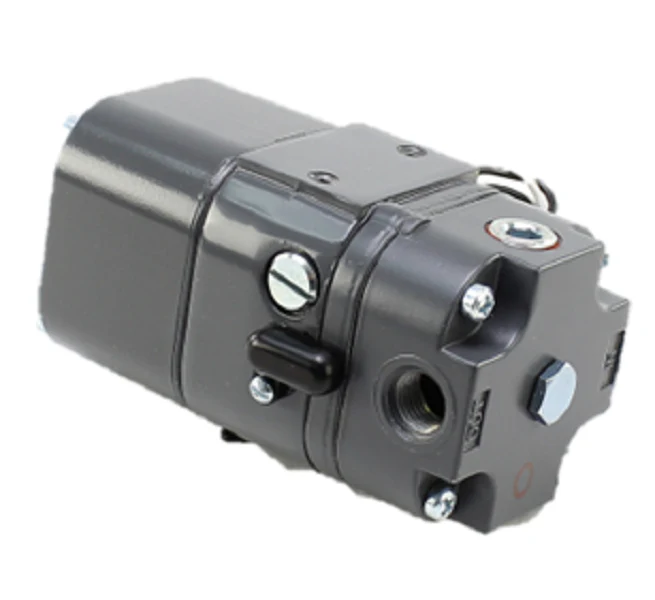

Dwyer Instruments IP-42 Pressure Transducer
The Dwyer Instruments IP-42 Pressure Transducer is a precision field-mounted I/P transducer designed to convert a standard 4-20 mA input signal into a proportional 3-15 psi pneumatic output. Built for industrial HVAC and process control environments, the IP-42 features a compact, lightweight housing that resists vibration and ensures stability in demanding applications. This current to pressure transducer utilizes a low-mass internal control system to provide high-accuracy regulation of pneumatic actuators and valves. With a 1/4" NPT pressure connection and a 1/2" NPT electrical connection, this unit facilitates straightforward integration into existing pneumatic loops. Its split-range capability and high flow capacity allow for responsive control over a wide range of terminal equipment, making it a reliable solution for technicians troubleshooting pneumatic control systems or performing HVAC valve calibration.
- Precise Signal Conversion: Ensures accurate linear output of 3-15 psi based on the 4-20 mA control signal.
- High Flow Capacity: Delivers up to 4.5 SCFM, reducing lag time in large pneumatic actuator responses.
- Flexible Mounting: Lightweight design allows for direct pipe mounting or bracket installation in tight enclosures.
- Field Adjustability: Features accessible zero and span adjustments for precise onsite calibration.
- Rugged Construction: Engineered to maintain signal integrity despite high-vibration industrial environments.
Common Questions
Can the IP-42 be mounted in any orientation?
While the unit is vibration-resistant, it is best practice to calibrate the zero and span after mounting if the orientation deviates from vertical to account for gravitational effects on the internal diaphragm.
What is the maximum supply pressure for this transducer?
The IP-42 typically requires a clean, dry air supply of 20 psi for a 3-15 psi output, with a maximum supply pressure rating of 100 psi, though regulated supply is recommended for longevity.
Is this unit suitable for outdoor installations?
The IP-42 is designed for protected environments; for outdoor or wash-down applications, it should be installed within a NEMA-rated enclosure to prevent moisture ingress through the vent.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $694.71
-65%$694.71
$243.15Dwyer Instruments IP-42 Pressure Transducer
The Dwyer Instruments IP-42 Pressure Transducer is a precision field-mounted I/P transducer designed to convert a standard 4-20 mA input signal into a proportional 3-15 psi pneumatic output. Built for industrial HVAC and process control environments, the IP-42 features a compact, lightweight housing that resists vibration and ensures stability in demanding applications. This current to pressure transducer utilizes a low-mass internal control system to provide high-accuracy regulation of pneumatic actuators and valves. With a 1/4" NPT pressure connection and a 1/2" NPT electrical connection, this unit facilitates straightforward integration into existing pneumatic loops. Its split-range capability and high flow capacity allow for responsive control over a wide range of terminal equipment, making it a reliable solution for technicians troubleshooting pneumatic control systems or performing HVAC valve calibration.
- Precise Signal Conversion: Ensures accurate linear output of 3-15 psi based on the 4-20 mA control signal.
- High Flow Capacity: Delivers up to 4.5 SCFM, reducing lag time in large pneumatic actuator responses.
- Flexible Mounting: Lightweight design allows for direct pipe mounting or bracket installation in tight enclosures.
- Field Adjustability: Features accessible zero and span adjustments for precise onsite calibration.
- Rugged Construction: Engineered to maintain signal integrity despite high-vibration industrial environments.
Common Questions
Can the IP-42 be mounted in any orientation?
While the unit is vibration-resistant, it is best practice to calibrate the zero and span after mounting if the orientation deviates from vertical to account for gravitational effects on the internal diaphragm.
What is the maximum supply pressure for this transducer?
The IP-42 typically requires a clean, dry air supply of 20 psi for a 3-15 psi output, with a maximum supply pressure rating of 100 psi, though regulated supply is recommended for longevity.
Is this unit suitable for outdoor installations?
The IP-42 is designed for protected environments; for outdoor or wash-down applications, it should be installed within a NEMA-rated enclosure to prevent moisture ingress through the vent.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
