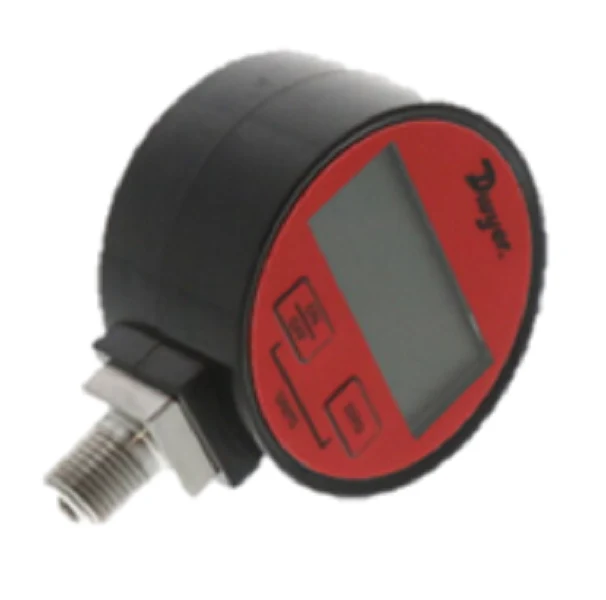

Dwyer Instruments DPGA-08 Pressure Gauge
For contractors requiring precision in air and compatible gas monitoring, the Dwyer Instruments DPGA-08 Pressure Gauge offers a professional-grade digital solution with a 0-100 psi range. This digital pressure gauge features a ±1% full-scale accuracy, encompassing linearity, hysteresis, and repeatability to ensure your readings stay within spec during critical process start-ups. Engineered with wetted materials like 316L stainless steel and a silicone sensor, the DPGA-08 is built for long-term reliability in OEM and commercial HVACR applications. The 4-digit LCD provides high visibility, while the selectable engineering units—including bar, kPa, kg/cm², and in Hg—allow for seamless integration into various international or local standards without manual conversion. With a 1/4 inch male NPT process connection and a simple push-button zero, this unit streamlines installation and field service calibration for technicians on the move.
Key Benefits- High Accuracy: Delivers ±1% FS measurement to minimize costly out-of-specification conditions in sensitive gas systems.
- Versatile Display: Features selectable engineering units such as psi, bar, kPa, and mm Hg for diverse operational requirements.
- Field Ready: Compact 2.62-inch diameter ABS housing with a 20-minute auto shut-off to preserve the life of the included 9V battery.
- Simplified Service: The digital push-button zero allows for rapid recalibration at the job site without specialized tools.
Is the DPGA-08 compatible with hydraulic fluids or water?
No, the DPGA-08 is designed specifically for air and compatible gases. For liquid applications, the DPGW series is the appropriate technical choice.
What is the maximum overpressure limit for this gauge?
The unit features a pressure limit of 2X the range (200 psi). Exceeding this limit may damage the silicone sensor or wetted 316L stainless steel components.
How do I change the measurement units on the display?
Technicians can cycle through units using the front-facing "Units" button. The LCD clearly indicates the active measurement unit for error-free data logging.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $155.21
-65%$155.21
$54.32Dwyer Instruments DPGA-08 Pressure Gauge
For contractors requiring precision in air and compatible gas monitoring, the Dwyer Instruments DPGA-08 Pressure Gauge offers a professional-grade digital solution with a 0-100 psi range. This digital pressure gauge features a ±1% full-scale accuracy, encompassing linearity, hysteresis, and repeatability to ensure your readings stay within spec during critical process start-ups. Engineered with wetted materials like 316L stainless steel and a silicone sensor, the DPGA-08 is built for long-term reliability in OEM and commercial HVACR applications. The 4-digit LCD provides high visibility, while the selectable engineering units—including bar, kPa, kg/cm², and in Hg—allow for seamless integration into various international or local standards without manual conversion. With a 1/4 inch male NPT process connection and a simple push-button zero, this unit streamlines installation and field service calibration for technicians on the move.
Key Benefits- High Accuracy: Delivers ±1% FS measurement to minimize costly out-of-specification conditions in sensitive gas systems.
- Versatile Display: Features selectable engineering units such as psi, bar, kPa, and mm Hg for diverse operational requirements.
- Field Ready: Compact 2.62-inch diameter ABS housing with a 20-minute auto shut-off to preserve the life of the included 9V battery.
- Simplified Service: The digital push-button zero allows for rapid recalibration at the job site without specialized tools.
Is the DPGA-08 compatible with hydraulic fluids or water?
No, the DPGA-08 is designed specifically for air and compatible gases. For liquid applications, the DPGW series is the appropriate technical choice.
What is the maximum overpressure limit for this gauge?
The unit features a pressure limit of 2X the range (200 psi). Exceeding this limit may damage the silicone sensor or wetted 316L stainless steel components.
How do I change the measurement units on the display?
Technicians can cycle through units using the front-facing "Units" button. The LCD clearly indicates the active measurement unit for error-free data logging.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
